Specifications
Brand Name :
Yiyuan
Certification :
ISO 14001, ISO 9001
Place of Origin :
China
MOQ :
1KM
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
500000km/month
Delivery Time :
30 working days after received your payment
Packaging Details :
Wood coil strand
Product Name :
ADSS fiber cable
Fiber count :
24/48/96/144 core
OEM :
Accepted
Type :
fiber optic cable, Coaxial
Application :
Outdoor Aerial, FTTH , access network
Jacket material :
PE or AT
Number of Conductors :
≥ 10
Strength member :
FRP
Description

100 Ft Corning Adss Fiber Optic Cable Single Sheath Power

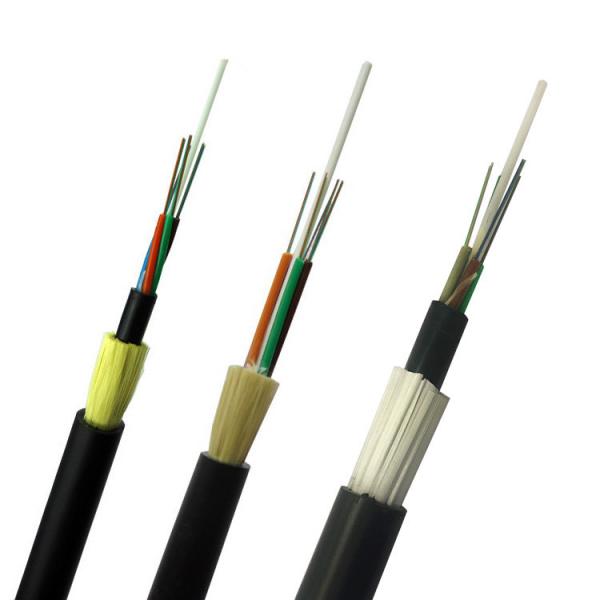

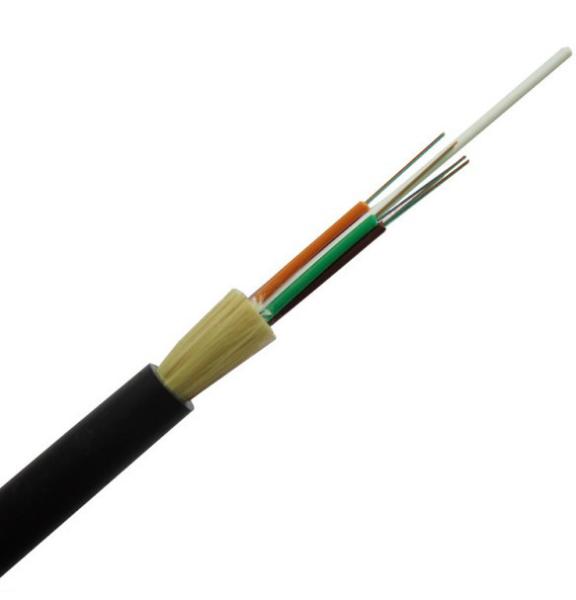

The fibres are in jelly-filled loose tubes, laid up around a central non-metallic strength member. The cable is water blocked, aramid yarn reinforced and PE or AT sheathed.


ADSS (All Dielectric Self-Supporting) Cable is suspended from poles or towers in telecommunication and power outside plant applications.

Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction

Appicable fieds:

Long-distance teecom,LAN in high -votage area or access to telecom network

Installation: Sef-support aeria

Structure Characters:

Loose tube wifh mon-metalic strengthen member
High flexible amaid yarn
Can work at electrix field≤25KV/min a ling period


Temperature Characteristics:
Operate temperature range: -40o C to +60 o C
Storage temperature range: -40 o C to +60 o C

No. of Fibers 2-36 38-72 74-96 98-120 122-144 146-216
Max No. of Fibers/Tube 6 12 12 12 12 12
No. of Tube(+Fillers) 6 6 8 10 12 18
Nominal Diameter 10.7 13.2 13.9 15.4 16.8 17
Cable Weight(kg/km) 89 135 150 185 220 225
Fiber Type G.652D G.655 G.657 OM1 OM2 OM3 OM4
Max .Allowable Tension Short Term :3500N
Long Term:100N MAT:3.5Kn RTS:9.0Kn
Wind Speed: ≤30m/s Ics:0mm
Min.Bend Radius (mm) Dynamic:20D Static:10D (D: Cable diameter)
Temperature Range -40°C~+70°C(Transportation& Storage)
-35°C~+65°C(Installation)
-40°C~+70°C(Operation)

100 Ft Corning Adss Fiber Optic Cable Single Sheath Power100 Ft Corning Adss Fiber Optic Cable Single Sheath Power
