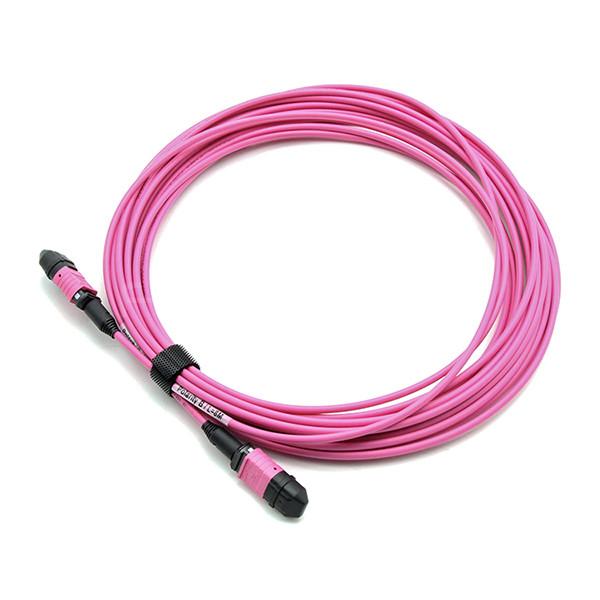

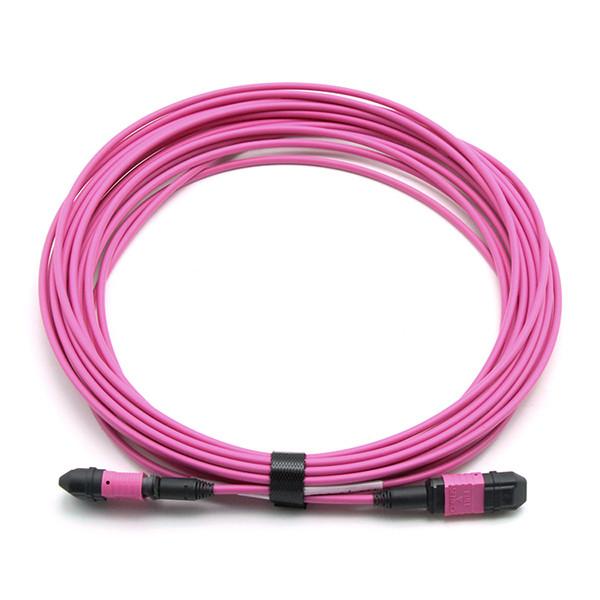

Male To Female MPO Trunk Cable Assembly 12 Fibers Polarity A OM4 OFNP Magenta Jacket
Male To Female MPO Trunk Cable Assembly 12 Fibers Polarity A OM4 OFNP Magenta Jacket
Male To Female MPO Trunk Cable Assembly 12 Fibers Polarity A OM4 OFNP Magenta Jacket
Male To Female MPO Trunk Cable Assembly 12 Fibers Polarity A OM4 OFNP Magenta Jacket
Specifications
Brand Name :
FiberMania
Model Number :
MTFMTF-R12S4RMG
Certification :
ISO, UL, CE, RoHS
Place of Origin :
Shenzhen, China
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Pieces per day
Delivery Time :
5 days
Packaging Details :
PE bag or OEM service optional
Connector Type :
MPO Female
Fiber Count :
12 Fibers
Polarity :
Type A
Cable (OD) :
3.0mm
Fiber Mode :
OM4 50/125μm
Wavelength :
850/1300nm
Cable Jacket :
OFNP
Jacket ColoAquar :
Magenta
Name :
MPO Solutions
Description

MPO Male to MPO Female Trunk Cable Assembly 12 Fibers Polarity A OM4 OFNP Magenta Jacket

The MPO trunk cables with a braided tubing jacket are typically designed for a longer cable length in cabinet-to-cabinet applications or for connecting different areas of a building. MPO cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management problems.

Applications of MPO Trunk Patch Cable

1. Data Center Interconnect

2. High-Density Fiber Management

3. Telecommunication Networks and CATV networks

4. LAN/WAN Premises

Features of MPO MPO Trunk Patch Cable

1. Low insertion loss and high return loss

2. High precision connector

3. PC UPC APC end face polish

4. Up to 288 fibers - ideal for high-density applications

5. 100% factory terminated and tested

6. Pulling eyes are provided as an option to protect the fiber ends during installation

7. Save installation and reconfiguration time

8. Customized length available

9. ROHS Compliant

Specifications of MPO Trunk Patch Cable

Connector

MPO(Male)

Fiber Mode

OM4 50/125μm

Polishing Type

UPC

Connector IL

0.35dB Max (0.15dB Typ.)

Connector RL

≥20dB

Breakout Type

0.3m Equal Breakout

Glass Fiber

Corning ClearCurve®

10G Ethernet Distance

400m at 850nm

40/100G Ethernet Distance

150m at 850nm

Attenuation at 850nm

≤2.3dB/km

Attenuation at 1300nm

≤0.6dB/km

Installation Tensile Load

66N

Tensile Strength (Long/Short Term)

80/240N

Storage Temperature

-40 to +85°C

Operating Temperature

 -20 to +85°C

Male To Female MPO Trunk Cable Assembly 12 Fibers Polarity A OM4 OFNP Magenta JacketMale To Female MPO Trunk Cable Assembly 12 Fibers Polarity A OM4 OFNP Magenta Jacket
