Female To Female MPO Trunk Cable Assembly 12 Fibers OM3 OFNR Aqua Jacket
Female To Female MPO Trunk Cable Assembly 12 Fibers OM3 OFNR Aqua Jacket
Female To Female MPO Trunk Cable Assembly 12 Fibers OM3 OFNR Aqua Jacket
Female To Female MPO Trunk Cable Assembly 12 Fibers OM3 OFNR Aqua Jacket
Specifications
Brand Name :
FiberMania
Model Number :
MTFMTF-R12S3RAQ
Certification :
ISO, UL, CE, RoHS
Place of Origin :
Shenzhen, China
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Pieces per day
Delivery Time :
5 days
Packaging Details :
PE bag or OEM service optional
Name :
MPO Trunk Cable
Connector Type :
MPO Female
Fiber Count :
12 Fibers
Polarity :
Type A
Cable (OD) :
3.0mm
Fiber Mode :
OM3 50/125μm
Wavelength :
850/1300nm
Cable Jacket :
OFNR
Jacket Color :
Aqua
Description

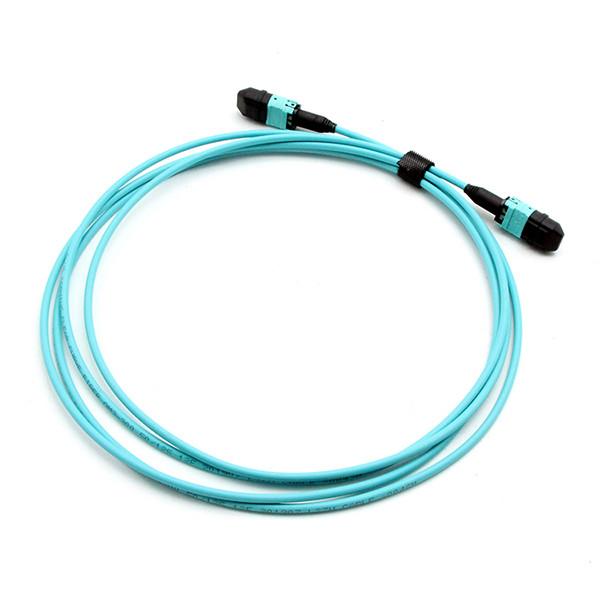

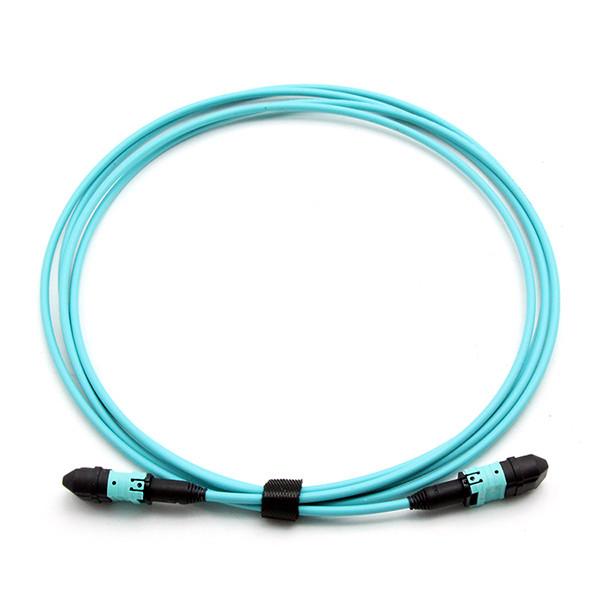

MPO Female to MPO Female Trunk Cable Assembly 12 Fibers OM3 OFNR Aqua Jacket

MPO Cable is a high-density fiber optic jumper commonly used in data centers, communications equipment, and network connections. The full name of MPO is "multi-fiber connector", which can connect multiple fibers in a connector at the same time, usually 12 or 24 fibers. This patch

cable consists of 12 optical fibers that are terminated on both sides with MPO female connectors, which are designed to be durable and suitable for high frequency and high performance fiber network environments.

Applications of MPO Trunk Patch Cable

1. Data Center Interconnect

2. FTTH Applications

3. Telecommunication infrastructure

4. LAN/WAN Premises

Features of MPO MPO Trunk Patch Cable

1. Low insertion loss and high return loss

2. High density connection

3. Simplify the fiber connection process

4. 100% factory terminated and tested

5. Flexibility and reliability

6. Save installation and reconfiguration time

7. Customized length available

8. ROHS Compliant

Specifications of MPO Trunk Patch Cable

Connector

MPO(Female)

Fiber Mode

OM3 50/125μm

Polishing Type

UPC

Connector IL

0.35dB Max (0.15dB Typ.)

Connector RL

≥20dB

Breakout Type

0.3m Equal Breakout

Glass Fiber

Corning ClearCurve®

10G Ethernet Distance

400m at 850nm

Attenuation at 850nm

≤2.3dB/km

Attenuation at 1300nm

≤0.6dB/km

Installation Tensile Load

66N

Tensile Strength (Long/Short Term)

80/240N

Storage Temperature

-40 to +85°C

Operating Temperature

 -20 to +85°C

Female To Female MPO Trunk Cable Assembly 12 Fibers OM3 OFNR Aqua JacketFemale To Female MPO Trunk Cable Assembly 12 Fibers OM3 OFNR Aqua Jacket
