12 Fiber MPO Cassette 6 Ports Fully Loaded For Data Center
12 Fiber MPO Cassette 6 Ports Fully Loaded For Data Center
12 Fiber MPO Cassette 6 Ports Fully Loaded For Data Center
12 Fiber MPO Cassette 6 Ports Fully Loaded For Data Center
12 Fiber MPO Cassette 6 Ports Fully Loaded For Data Center
12 Fiber MPO Cassette 6 Ports Fully Loaded For Data Center
Specifications
Brand Name :
FiberMania
Model Number :
MTC12LCDFSL
Certification :
ISO, UL, CE, RoHS
Place of Origin :
Shenzhen, China
MOQ :
10 Pieces
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10000 Pieces per day
Delivery Time :
5 days
Packaging Details :
PE bag or OEM service optional
Name :
MPO Cassette
Connector Type :
MPO Male to MPO Female
Fiber Count :
12 Fibers
Polarity :
Type A
Cable (OD) :
3.0mm
Fiber Mode :
OM3 50/125μm
Wavelength :
850/1300nm
Cable Jacket :
OFNP
Jacket ColoAquar :
Pink
Description

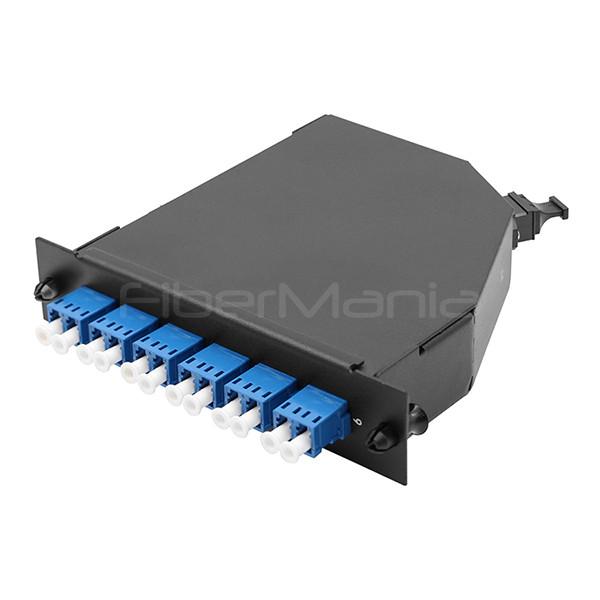

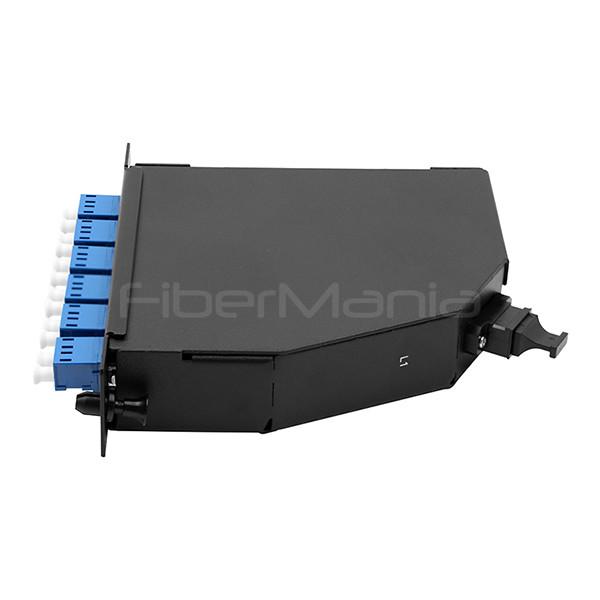

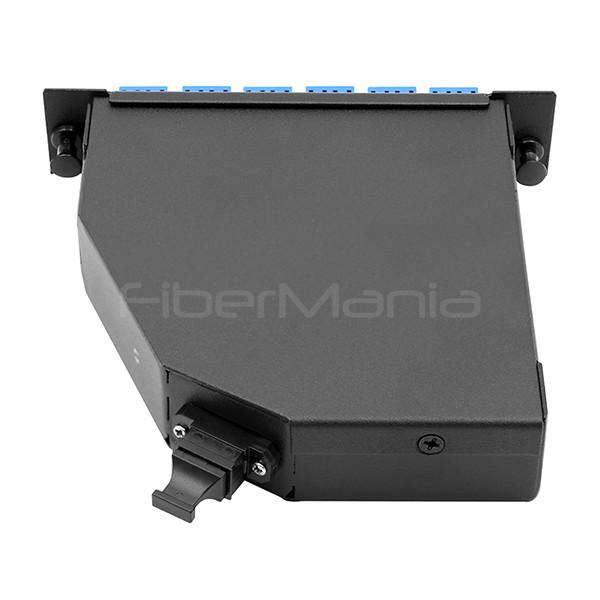

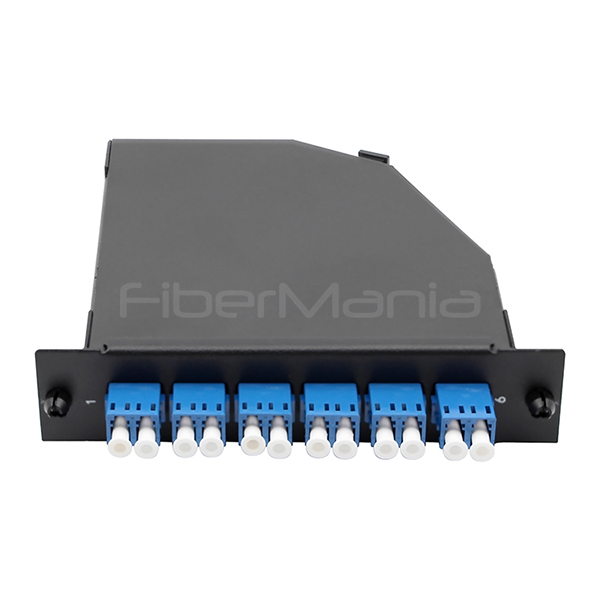

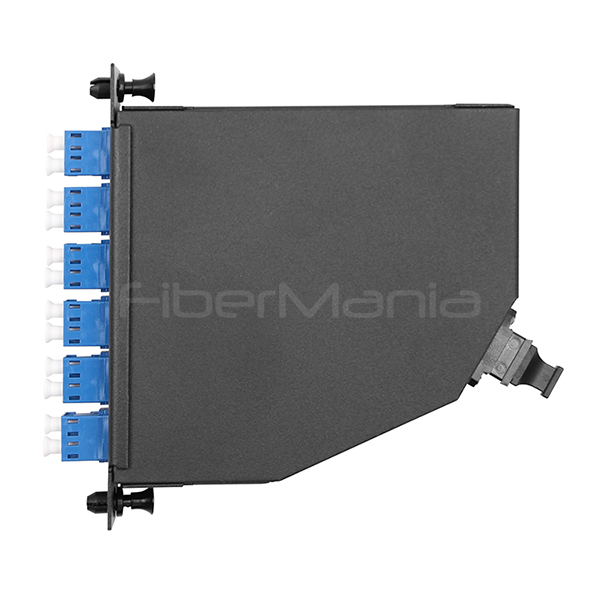

12 Fiber MPO Male to LC Duplex Flangeless Single Mode Cassette 6 Ports Fully Loaded

This MPO cassette is loaded with 6 OM3 multimode LC duplex adapters, giving it 12 ports total. Inside the MPO cassette, the fiber is spliced out to one MPO adapter, giving you an easy plug-and-play option for your high-density fiber application. All FiberMania MPO cassettes are with LGX footprint design, they work perfectly with our MPO patch panels or LGX rack mount panels.

Applications of MPO Trunk Patch Cable

1. LAN, WAN and SAN

2. Data center

3. Telecommunication networks

4. Parallel Optics

5. Emerging 40 and 100Gbps Protocols

Features of MPO MPO Trunk Patch Cable

1. High density

2. Ideal for data center applications

3. MPO standard-compliant multi-fiber connector

4. Available with OS1/2, OM1, OM2, OM3, OM4, OM5 fiber grades

5. Available with different fiber adapter ports, SC, LC, ST, FC, etc.

6. Rapid deployment terminated modular system saves installation time and labor

Specifications of MPO Trunk Patch Cable

Connector

MPO(Male to Female)

Fiber Mode

OM3 50/125μm

Polishing Type

UPC

Connector IL

0.35dB Max (0.15dB Typ.)

Connector RL

≥20dB

Breakout Type

0.3m Equal Breakout

Glass Fiber

Corning ClearCurve®

10G Ethernet Distance

400m at 850nm

Attenuation at 850nm

≤2.3dB/km

Attenuation at 1300nm

≤0.6dB/km

Installation Tensile Load

66N

Tensile Strength (Long/Short Term)

80/240N

Storage Temperature

-40 to +85°C

Operating Temperature

 -20 to +85°C

12 Fiber MPO Cassette 6 Ports Fully Loaded For Data Center12 Fiber MPO Cassette 6 Ports Fully Loaded For Data Center
