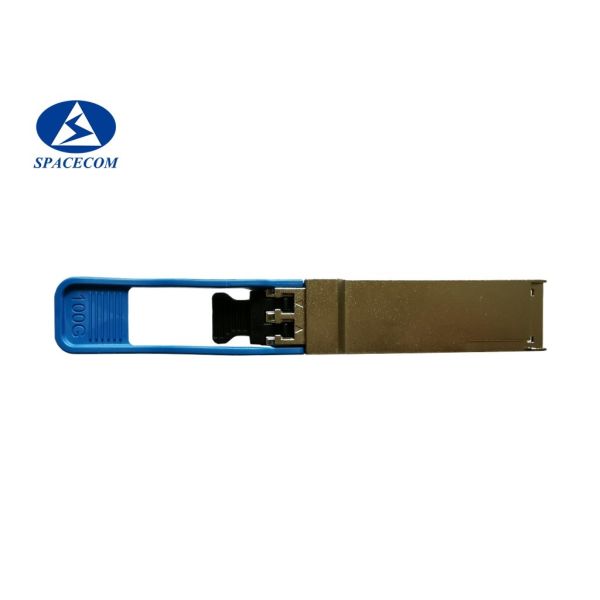

FTTH SFP Transceiver Modules 100G QSFP28 LR4 20KM 1310nm For H3C High Speed SFP
FTTH SFP Transceiver Modules 100G QSFP28 LR4 20KM 1310nm For H3C High Speed SFP
Specifications
Brand Name :
SPACECOM or OEM
Model Number :
SPC-QSFP28-100G-LR4
Certification :
CE RoHS FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, WU, PayPal, Moneygram, L/C, Western Union
Supply Ability :
40,000pcs per week
Delivery Time :
3-7 working days
Packaging Details :
10 or 20 pcs/ plastic tray or individual
Wavelength :
1310nm
Distance :
20KM (SM)
Fiber type :
dualfiber
Warranty :
3 Years
Application :
FTTH FTTB FTTX Network
name :
100G QSFP28 LR4 20KM LC Optical Transceiver
keyword :
1310nm Optical Transceiver Module
Description

FTTH Optic SFP Module 100G QSFP28 LR4 20KM 1310nm for H3C High Speed SFP

Description


SPACECOM QSFP28 100G LR4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers.The laser drivers control 4- Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm,1305nm and 1309 nm.

The optical signals are multiplexed to a single –mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface.

Product Name: 100G QSFP28 module / Qsfp28 100gbase LR4 Model Name: QSFP28-100G-LR4
Wavelength: 1310nm Data Rate: 100Gbps
Transmission Distance: 20Km Connector Type:

LC
DDM: YES Working Environment: Commercial 0~70℃
Cable Type: SMF Compatibility: Multiple brands of switches

Features

  • Compliant with 100GBASE-LR4
  • Support line rates from 103.125 Gb/s to 111.81 Gb/s
  • Integrated LAN WDM TOSA / ROSA for up to 10 km reach over SMF
  • CAUI(10x10G) Electrical Interface and 4-lane 25.78Gb/s optical interface
  • Duplex LC optical receptacle
  • Support Digital Diagnostic Monitoring interface
  • No external reference clock
  • RoHS-6 compliant and lead-free
  • Compliant with QSFP28 MSA with LC connector
  • Single +3.3V power supply
  • Maximum power consumption 3.5W
  • All-metal housing for superior EMI performance
  • Case operating temperature Commercial: 0 ~ +70oC

Applications

  • 100G Ethernet &100GBASE-LR4
  • ITU-T OTU4

Standards

  • Compliant with IEEE 802.3ba
  • Compliant with QSFP28 MSA hardware specifications
  • Compliant with RoHS
