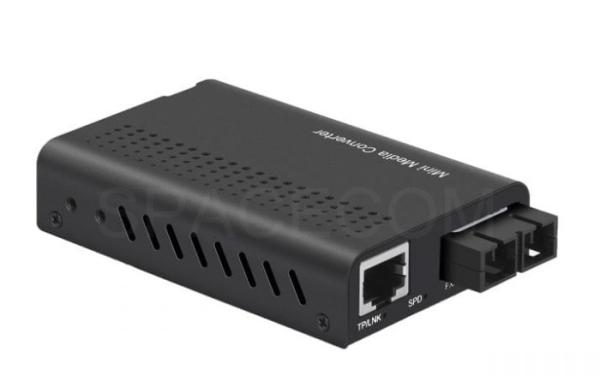

Mini Fast Ethernet Media Converter 10/100Base T RJ45 Port
Mini Fast Ethernet Media Converter 10/100Base T RJ45 Port
Specifications
Brand Name :
SPACECOM or OEM
Model Number :
SPC-110C-**
Certification :
CE RoHS FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, WU, PayPal, Moneygram, L/C, Western Union
Supply Ability :
2000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
Carton packing
Warranty :
1Years
Application :
FTTH FTTB FTTX Network
name :
Mini Fast Ethernet Media Converter
keyword :
Fast Ethernet Media Converter
power input :
DC 5-12V
Operating Temperature :
0°C~50°C
Dimensions :
90mm×60mm×20mm(L x W x H)
Description

Mini Fast Ethernet Media Converter

Description

Mini Fast Ethernet Media Converter is a Fast Ethernet stand-alone Mini media converter that provides cost effective, entry-level media conversion between 10/100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and with its small size, it is ideal for locations where space is limited. 10/100Base Fiber Media Converter, SFP Fiber Media Converter, Options in single mode dual fiber, multimode dual fiber and single mode single fiber.

Product Name: Mini Fast Ethernet Media Converter Model Name: SPC-110C-**
Copper Port:

10/100Base-T RJ45

power input:

DC 5-12V

Fiber Mode:

 100BASE-X, 2km-160km, SC/ST/FC Working Environment:

0°C~50°C

Features

  • 10/100Base-TX to 100Base-FX Ffiber Media Converter;
  • Unit and Port LEDs allow for quick status information;
  • Support Auto-Negotiation, Auto MDI/MDI-X and Half/Full Duplex mode;
  • Support Jumbo Frame;
  • Automatic Link Restoration;
  • Connect to legacy network equipment;
  • Eliminate Collision Domains;
  • Support 1U Rack (12 channel) and Standalone use;
  • Comply with IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standards;
  • Prevent packet loss with back pressure and IEEE 802.3x pause frame flow control;
  • SC/FC/ST/LC Connectors optional;
  • DIP Switch to set different configurations;
  • Compact package size, easy installation;
  • Support Link Fault Pass Through (LFP);

Specification

Physical Port
Copper Port 10/100Base-T RJ45
SFP Port 100BASE-X SFP interfaces
Fiber Mode 100BASE-X, 2km-160km, SC/ST/FC
Parameters
Ethernet Standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3x flow control and back pressure
Packet Length 2046bytes
Transmission Mode Store and Forward/Cut through
Exchange Property Delay time: < 7ps

Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
DIP Switches LFP function:Disable/Enable

Fowrward mode:Store and forward/Cut through
LED Indicator
Power Connect-always
RJ45 Link/Act: connect-always; data exchange-twinkle
Fiber Link/Act: connect-always; data exchange-twinkle
Fiber Speed FX 10M/100M
Power Information
Power Input Adapter Type: DC 5-12V
Power Consumption Full-load<3W
Physical Property
Dimensions 90mm×60mm×20mm
Installation Mode wall-mountable
Weight 130g
Working Environment
Operating Temperature 0°C~50°C
Operating Humidity 10%~90% non-condensing
Storage Temperature -10°C~70°C
Warranty
MTBF 50,000 hours
Defects Liability Period 1 year warranty, lifetime technical support
Certification Standard
EMC

FCC Part15 Class A

CE-EMC/LVD

RoHS

EN61000-4-2 (ESD), EN61000-4-3 (RS)

EN6100044 (EFT), EN6100045 (Surge)

EN61000^1-6 (CS), EN61000-4-8

EN61000-4-11

Quality control


Mini Fast Ethernet Media Converter 10/100Base T RJ45 Port

Mini Fast Ethernet Media Converter 10/100Base T RJ45 Port

More Question

1. Can I have a sample order?What is your MOQ?

Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.


2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


4. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.

Could also support L/C,Credit terms.

5. What is your warranty time
We promise 3 years warranty for all products shipped from us.


6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.

7. Could i use our own logo and label?

Yes,we could provide a OEM service and make the products with your own label.

Mini Fast Ethernet Media Converter 10/100Base T RJ45 Port
