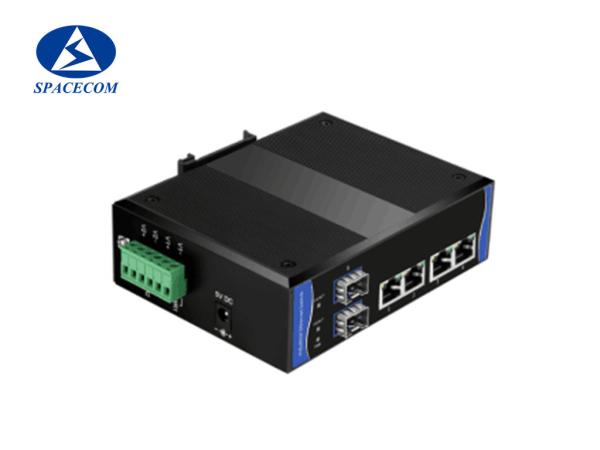

Gigabit Din Rail POE Switch with 4 Port TX 2 Port FX Fast SFP
Gigabit Din Rail POE Switch with 4 Port TX 2 Port FX Fast SFP
Specifications
Brand Name :
SPACECOM or OEM
Model Number :
SPC-IN310-2SF4T-POE
Certification :
CE RoHS FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, WU, PayPal, Moneygram, L/C, Western Union
Supply Ability :
3500pcs/month
Delivery Time :
3-7 working days
Packaging Details :
Carton packing
Warranty :
1Years
Application :
FTTH FTTB FTTX Network
name :
Gigabit PoE Industrial Switch 4x10/100/1000Base-T + 2x100/1000Base-X SFP 4xPoE
keyword :
Fast Ethernet Media Converter
Redundant power input :
DC 9-56V
Operating Temperature :
-40℃~75℃
Dimensions :
138mm x 106mm x 41mm (L x W x H)
Description

Gigabit PoE Industrial Switch 4x10/100/1000Base-T + 2x100/1000Base-X SFP 4xPoE

Description

SPC-IN310-2SF4T-POE is a new generation Power over Ethernet Managed Industrial switch with 4-Port 10/100/1000Base-TX and 2-Port 100/1000Base-FX Fast SFP that provide stable and reliable Ethernet transmission offered by Spacecom,with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.

Product Name: Gigabit PoE Industrial Switch Model Name: SPC-IN310-2SF4T-POE
RJ45 port and speed:

4x10/100/1000Base-TX/8xPoE

Redundant power input:

DC 9-56V

Overload protection:

 Yes Working Environment:

-40℃~75℃

Features

  • 4x10/100/1000Base-TX RJ45 ports, 2x100/1000Base-FX Fast SFP ports, 4xPoE
  • Support Auto-MDIX, and full/half duplex self-negotiation mode
  • Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
  • Support 10K bytes giant frame, compatible with various extension protocol
  • 8K MAC address table
  • Support IEEE802.3az energy efficient Ethernet technology
  • Support IPv6 Protocol
  • Electric 8KV surge protection, easy to use in outdoor environment
  • Complete status indicator, working state at a glance
  • Power input polarity protection design, no worry about wrong operation
  • Metal case, no fan design
  • Installation method: DIN trail /Wall mounting

Specification

Physical Port

RJ45 port and speed 4x10/100/1000Base-TX/8xPoE
Fiber port and speed 2x100/1000Base-FX SFP

Parameters

Ethernet standards

 IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3Qad IEEE802.3ah IEEE802.1X IEEE802.1Q IEEE1588
Packet buffer 4Mbits
Maximum packet length Up to 10K Bytes
MAC address table 8K
Transmission mode Store and Forward(full/half duplex mode)

Exchange property

Delay time: < 7μs

Backplane bandwidth: 1Gbps

Packet forwarding rate: 148810 (64Byte)

PoE

PoE standard 4x IEEE 802.3af /IEEE 802.3at PoE
Power budget Max. PoE output power budget 30W

LED Indicator

Power Connect-always
RJ45 Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber Link/Act: connect-always; data exchange-twinkle

Power Information

Power access mode Phoenix terminal, DC seat
Redundant power input DC 9-56V
Overload protection Yes
Power reverse Support
Power consumption Full-load<15W

Physical Property

Protection grade IP40 aluminum case
Cooling mode Natural cooling, no fan design
Dimensions 138mm x 106mm x 41mm (L x W x H)
Installation mode DIN trail/wall-mountable
Weight 700g

Working Environment

Operating Temperature -40℃~75℃
Operating Humidity 5%~90% non-condensing
Storage -40℃~85℃

Warranty

MTBF 500,000 hours
Defects Liability Period 3 year warranty, lifetime technical support

Certification Standard

EMI FCC Part15 Subpart B Class A,EN 55022 Class A

EMS

 EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11
Collision IEC60068-2-27
Drop IEC60068-2-32
Vibration IEC60068-2-6
Safety grade EN60950-1

Quality control


Gigabit Din Rail POE Switch with 4 Port TX 2 Port FX Fast SFP

Gigabit Din Rail POE Switch with 4 Port TX 2 Port FX Fast SFP

More Question

1. Can I have a sample order?What is your MOQ?

Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.


2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


4. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.

Could also support L/C,Credit terms.

5. What is your warranty time
We promise 3 years warranty for all products shipped from us.


6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.

7. Could i use our own logo and label?

Yes,we could provide a OEM service and make the products with your own label.
