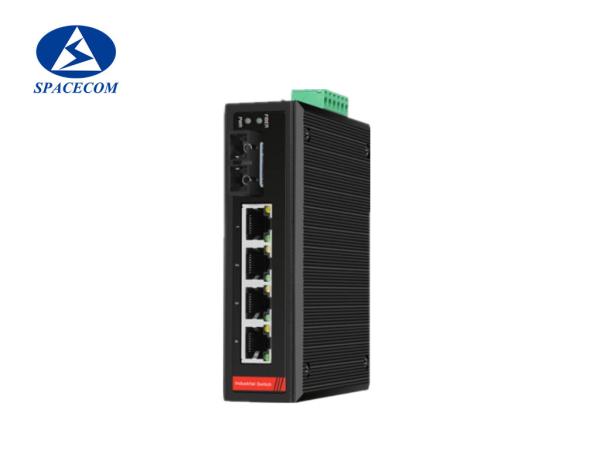

Fast Ethernet Gigabit Poe Switch 4 Port 10/100/1000Base TX
Fast Ethernet Gigabit Poe Switch 4 Port 10/100/1000Base TX
Specifications
Brand Name :
SPACECOM or OEM
Model Number :
SPC-IN310-1SF4T-POE
Certification :
CE RoHS FCC
Place of Origin :
China
MOQ :
1pcs
Price :
Get latest price
Payment Terms :
T/T, WU, PayPal, Moneygram, L/C, Western Union
Supply Ability :
3000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
Carton packing
Warranty :
1Years
Application :
FTTH FTTB FTTX Network
name :
Gigabit POE Industrial switch 4x10/100/1000Base-T + 1x1000Base-X SFP ，4*POE
keyword :
Fast Ethernet Media Converter
Redundant power input :
DC 9-56V,DC 5V
Operating Temperature :
-40℃~75℃
Dimensions :
120mm x 88mm x 35mm (L x W x H)
Description

Gigabit POE Industrial switch 4x10/100/1000Base-T + 1x1000Base-X SFP ,4*POE

Description

SPC-IN310-1SF4T-POE is a new generation Power over Ethernet Industrial switch with 4-Port 10/100/1000Base-TX and 1-Port 1000Base-FX Fast SFP that provide stable and reliable Ethernet transmission offered by Spacecom,with high quality design and reliability.

With dual power input design, SPC-IN310-1SF4T-POE can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 75°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.

Product Name: Gigabit PoE Industrial Switch Model Name: SPC-IN310-1SF4T-POE
RJ45 port and speed: 4x10/100/1000Base-TX/4xPoE

Redundant power input:

DC 9-56V,DC 5V

Overload protection:

 Yes Working Environment:

-40℃~75℃

Features

  • 4x10/100/1000Base-TX RJ45 ports, 1x1000Base-FX Fast SFP ports/4*POE
  • Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
  • Support Auto-MDIX, and full/half duplex self-negotiation mode
  • Support 10K bytes giant frame, compatible with various extension protocol
  • Support IPv6 Protocol
  • Support IEEE802.3az energy efficient Ethernet technology
  • 8K MAC address table
  • Electric 8KV surge protection, easy to use in outdoor environment
  • Complete status indicator, working state at a glance
  • Power input polarity protection design, no worry about wrong operation
  • Metal case, no fan design

Specification

Physical Port

RJ45 port and speed 4x10/100/1000Base-TX/4*POE
Fiber port and speed 1x1000Base-FX SFP

Parameters

Ethernet standards

 IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.3az IEEE802.3Qad IEEE802.3ah IEEE802.1X IEEE802.1Q IEEE1588
Packet buffer 2Mbits
Maximum packet length Up to 10k Bytes
MAC address table 8K
Transmission mode Store and Forward(full/half duplex mode)

Exchange property

Delay time: < 7μs

Backplane bandwidth: 1Gbps

Packet forwarding rate: 148810 (64Byte)

PoE

PoE standard 8x IEEE 802.3af /IEEE 802.3at PoE
Power budget Max. PoE output power budget 30W

LED Indicator

Power Connect-always
RJ45 Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle
Fiber Link/Act: connect-always; data exchange-twinkle

Power Information

Power access mode Phoenix terminal, DC seat
Redundant power input DC 9-56V,DC 5V
Overload protection Yes
Power reverse Support
Power consumption Full-load<15W

Physical Property

Protection grade IP40 aluminum case
Cooling mode Natural cooling, no fan design
Dimensions 120mm x 88mm x 35mm (L x W x H)
Installation mode DIN trail/wall-mountable
Weight 500g

Working Environment

Operating Temperature -40℃~75℃
Operating Humidity 5%~90% non-condensing
Storage -40℃~85℃

Warranty

MTBF 500,000 hours
Defects Liability Period 3 year warranty, lifetime technical support

Quality control


Fast Ethernet Gigabit Poe Switch 4 Port 10/100/1000Base TX

Fast Ethernet Gigabit Poe Switch 4 Port 10/100/1000Base TX

More Question

1. Can I have a sample order?What is your MOQ?

Yes, we welcome sample order to test and check quality. We do not have MOQ,1 sample is available.


2. What is the lead time?
For usual products,We keep stock,could ship about 3 days after received payment.For big quantity and special products,Please check lead time with our sales representative.


3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


4. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Paypal.

Could also support L/C,Credit terms.

5. What is your warranty time
We promise 3 years warranty for all products shipped from us.


6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,we could accept free exchange.

7. Could i use our own logo and label?

Yes,we could provide a OEM service and make the products with your own label.

Fast Ethernet Gigabit Poe Switch 4 Port 10/100/1000Base TX
