LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
Specifications
Brand Name :
sunwise
Model Number :
PLCX2X16
Certification :
CE RoHS FCC,CE/TUV/ISO9001
Place of Origin :
CHINA
Application :
FTTH FTTB FTTX Network
Color :
blue,blue or as required,aqua,Yellow,Green
Fiber type :
G657A2,G652D,Singlemode or multimode,SM/MM/OM3
Connector type :
DLC/PC,SC; FC; LC; ST; MTRJ; MU; E2000; MPO; SMA; FDDI; DIN4; D4,Uniboot LC / APC / UPC
Insertion loss :
≤0.2 dB,≤0.1dB
Return loss :
UPC>55dB,PC >45dB UPC >55dB APC >60dB
Wavelength :
1310nm/1550nm/850nm/1300nm
Material :
LSZH,PVC
Connector :
SC/LC/FC/ST
Operating temperature :
-40 ~+75 Degree
Fiber mode :
SM/MM
Description

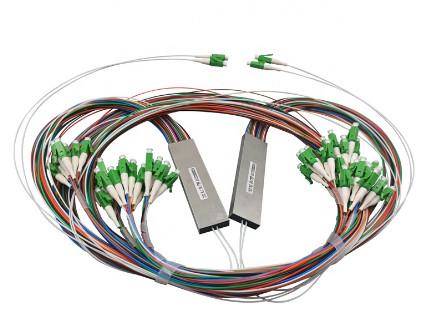

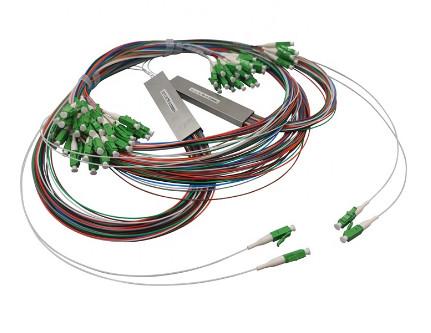

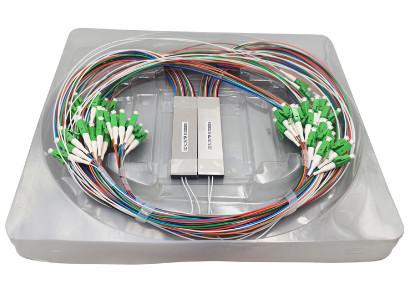

PLC-MMST-2X32-LC-APC Steel Tube 2x32 PLC Splitter, With LC/APC Connector

Fiber optic splitter is also called optical splitter, which is one of the most important passive devices in optical fiber link, is with multiple inputs and multiple output end of the optical fiber connected devices. The fiber optic splitter by the light splitting principle can be divided into the fused biconical taper (FBT type) and planar waveguide type (PLC type).

Product Name Steel Tube 2x32 PLC Splitter with LC/APC Connector
Package Size 80*20*6mm
Weight 0.35kg
Insertion Loss ≤17.2dB

Specification:

Product Type 2x32 PLC Splitter
Operating Wavelength nm 1260--1650
Insertion Loss Typ. dB 17.2
Max dB 17.9
Uniformity(Max) dB 1.8
PDL(Max) dB 0.3
TDL(Max) dB 0.5
Return Loss dB ≥55
Directivity dB ≥50
Operating &Storage Temperature °C -40--+80

LC/APC Connector G657A2 Steel Tube 2x32 PLC Fiber Splitter
