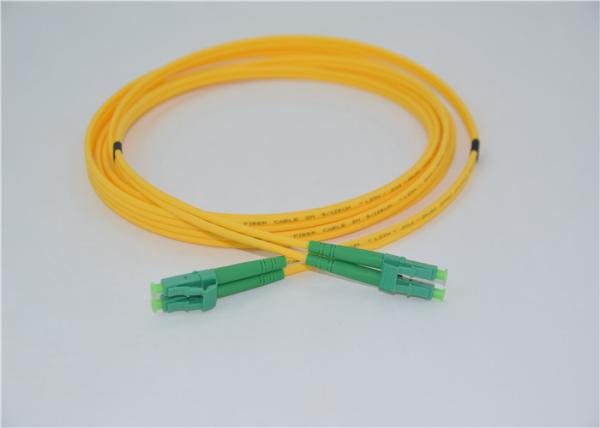

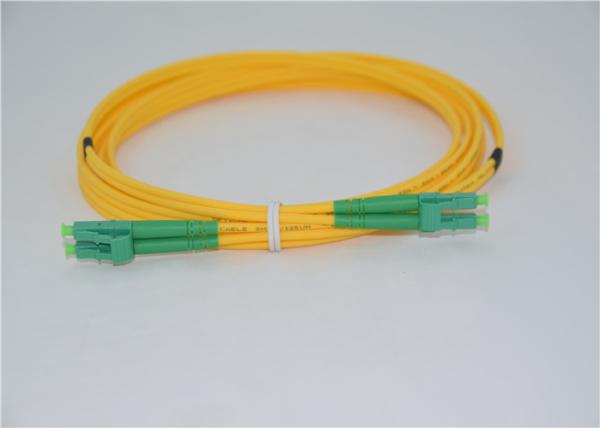

Ftth Sc Lc 3m Length 0.2dB LSZH Optic Fiber Patch Cord
Ftth Sc Lc 3m Length 0.2dB LSZH Optic Fiber Patch Cord
Ftth Sc Lc 3m Length 0.2dB LSZH Optic Fiber Patch Cord
Ftth Sc Lc 3m Length 0.2dB LSZH Optic Fiber Patch Cord
Ftth Sc Lc 3m Length 0.2dB LSZH Optic Fiber Patch Cord
Ftth Sc Lc 3m Length 0.2dB LSZH Optic Fiber Patch Cord
Specifications
Brand Name :
SUNWISE
Model Number :
LC UPC to LC UPC OM4
Place of Origin :
Made In China
Application :
FTTH FTTB FTTX Network
Product name :
Armored Fiber Optic Patch Cable Cord
Insertion loss :
0.2dB
Outer Jacket :
PVC/LSZH
Operating Tempera :
-40℃〜75℃
Connector type :
FC, SC, LC
Core :
Duplex, Simplex, Fan-out,
Length :
1m 2m 3m Or Customized
Description

Ftth Sc Lc Singlemode Multimode Optic Fiber Patch Cord

Product Description Fiber Optic Patch Cable

Parameters Standard Fiber Cable Assemblies
Fiber Type SM(G.652/G.657A) MM(OM1/OM2/OM3)
Jacket Materials LSZH/OFNR/PVC
Connector Type SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials Ceramic
Testing Wavelengths 1310±30/1550±30nm 850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107		 ≤ 0.3dB
(PC/UPC/APC)		 ≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥45dB(PC/UPC)
≥55dB(APC)		 ≥35dB(PC/UPC)
Exchangeability ≤ 0.2dB
Cable Assemblies Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C) -10~ + 70
Storage Temperature (° C) -40 ~ +85
Package 1unit/bag
*All values specified are with connectors.


Product Feature Fiber Optic Patch Cable

Suitable for telecommuniction networks

Type: FC, SC, ST, MU, LC ,MTRJ,MPO,SMA,E2000,DIN

High durability and reliability

Low insertion loss and high return loss

Single mode/multi mode, PC/UPC/APC patch cord and pigtail available

Single core, 2 cores, 4 cres, 6 cores, 8 cores, 12 cores and multi core patch cord and pigtail available

Product Specification Fiber Optic Patch Cable

Insertion loss: ≤ 0.3dB

Return loss:≥55dB

Durability; ≥1000 times

Operating temperature; -40~+80°

Working wavelength:1310-1550nm
