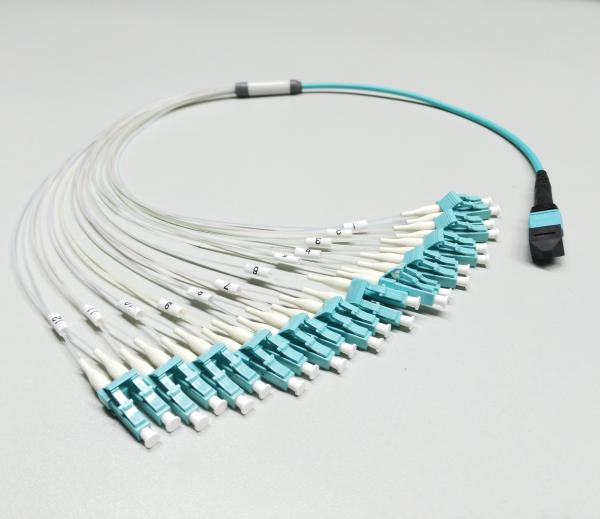

SM MM Fiber Optic Cable Om1 Om2 Om3 Om4 MTP MPO 12 Fiber Optic Patch Cable
SM MM Fiber Optic Cable Om1 Om2 Om3 Om4 MTP MPO 12 Fiber Optic Patch Cable
Specifications
Brand Name :
SUNWISE
Model Number :
MPO/APC
Place of Origin :
MADE IN CHINA
MOQ :
Negotiable
Supply Ability :
1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
Application :
CATV
Fiber type :
G657A2,OM1,OM2,OM3,OM4
Product name :
Optic patch cable
Certification :
ISO9001
Wavelength :
1310/1550nm(SM)
Connector :
MPO/MTP
Cable type :
12F
Fiber mode :
SM/MM
Price :
Negotiable
Packaging Details :
jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft
Delivery Time :
jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Payment Terms :
Western union,T/T,PayPal
Description

SM MM Fiber Optic Cable Om1 Om2 Om3 Om4 MTP MPO 12 Fiber Optic Patch Cable


MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 10/40/100G high-density data center applications.

Product Specifications

Connector A

MPO Female (pinless)

Connector B

MPO Female (pinless)

Fiber Mode

OS2 9/125 μm SM

Wavelength

1310/1550 nm

Polish Type

APC to APC

Minimum Bend Radius

10 mm

Insertion Loss

0.35 dB Max. (0.15 dB Typ.)

Return Loss

≥ 60 dB

Attenuation at 1310 nm

≤ 0.32 dB/km

Attenuation at 1550 nm

≤ 0.18 dB/km

Jacket OD

3.0 mm

Cable Jacket

LSZH

Installation Tensile Load

100 N

Long-Term Tensile Load

50 N

Storage Temperature

-40°C to 85°C

Operating Temperature

-10°C to 70°C


Our optical fiber patch cord is high return loss and low insertion loss ,Insertion loss of fiber patch cord is less than 0.2dB,Return loss of fiber patch cord is UPC more than 55dB ,APC is more than 60dB
all the patch cord can be custmomized according to your request .
We produce it according to Europe standard . We will control the quality and 100% make sure each products are qualified before shipping
Standard: IEC, Telcordia GR-326-CORE
Operating temperature range: -40°C--80°C
Polish:PC/UPC/APC
Storage temperature range: -40°C--80°C
Patch cord Tensile strength: >10kg
Fiber patch cord diameter: 0.9mm, 2.0mm, 3.0mm fiber is available
Fiber jacket PVC or LSZH cable is available
Fiber optic patch cord with excellent changeability and repeatability

Applications
1. CATV
2. Active dvice termination
3. Telecommunication networks
4. Metro
5. Local Area Networks(LANs)
6. Data Processing networks
7. Test Equipment
8. Premise installations.
9. Wide Area Networks(WANs)
10G-10G Structured Fiber Cabling Accomplished by Deploying MPO Cables, Fiber Patch Cables and FHD Series Cable Management

Why choose Sunwise Fiber Optic to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.
