Specifications
Brand Name :
Sunwise
Model Number :
LC/UPC 5dB
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
8*6CM
Wavelength :
1310/1550nm
Connector type :
LC SC FC ST
Product name :
fiber attenuator
Material :
Plastic
Type :
Male-female
Return Loss :
≥55dB
Delivery Time :
jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Payment Terms :
Western union,T/T,PayPal
Supply Ability :
1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
Description

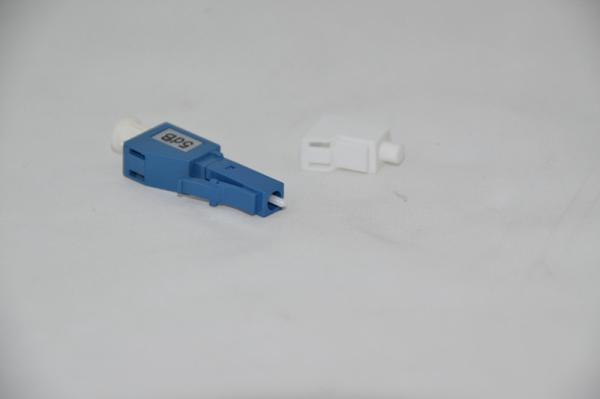

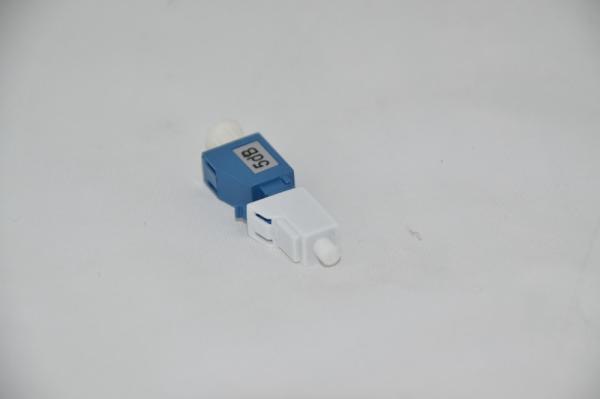

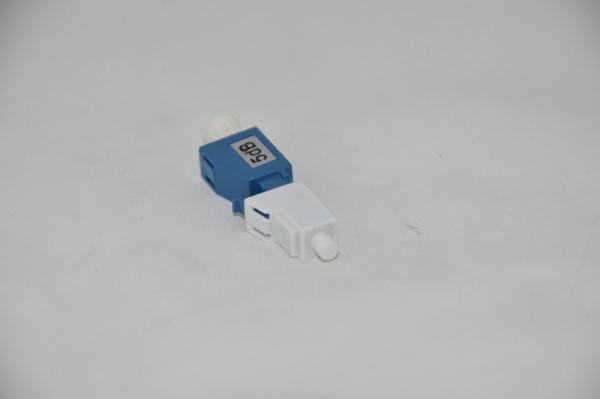

LC UPC Fixed Fiber Optic Attenuator Precision Ceramic Ferrule Plastic Material


As a optical passive devices, Sunwise attenuators mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired leve in the link without any changes on its original transmission wave.

Fiber Connector

LC/UPC

Ferrule Type

Zirconia Ceramic

Connector Gender

Fixed Male to Female

Transfer Mode

Singlemode

Attenuation

5dB

Operating Wavelength(nm)

1260~1620(SM)

Attenuation Accuracy

±0.5dB

Return Loss

≥55dB

Polarization Dependent Loss

≤0.2dB

Max Optical Input Power

200mW

Humidity

95%RH

Operating Temp Range

-40~80°C

Storage Temp Range

-40~85°C

LC UPC Fixed Fiber Optic Attenuator Precision Ceramic Ferrule Plastic Material

Application :

1: Telecommunication networks;

2: Premise installations and instrumentations;

3: Data processing networks;

Features

1. Low back reflection and Low PDL

2. High precision attenuation value
3. Precision control of attenuation range
4. Wide attenuation range
5. Precision ceramic ferrule

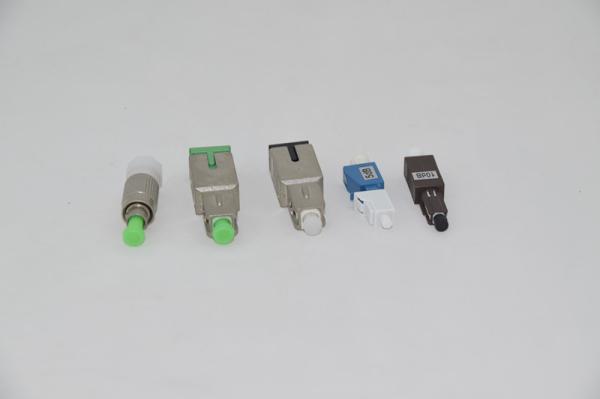

6. FC, SC, ST, LC … optional
7. Plastic or metal housing material

FAQ
1. Are you the real factory?
Yes,we are the real factory.

2. What is your main products?

Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.SC/LC/F adapters,attenuators.

Outdoor fiber optic cables; indoor fiber optic cables.

3. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.

4. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers
