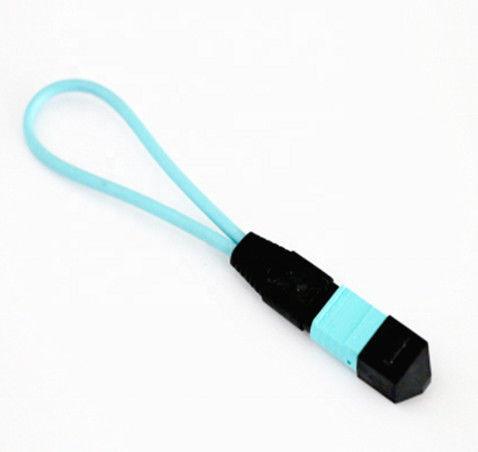

ROHS ISO Fiber Optic Loopback OM3 24 Fiber 500 Times Durability For CATV
ROHS ISO Fiber Optic Loopback OM3 24 Fiber 500 Times Durability For CATV
Specifications
Brand Name :
SUNWISE
Model Number :
MTP MPO Loopback
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western union,T/T,PayPal
Supply Ability :
1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
Delivery Time :
jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Packaging Details :
jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft
Wavelength :
1310/1550nm
Warranty :
1 Year
Type :
Male to Female
Material :
Metal,Plastic
Attenuation range :
1~30dB or custom
Durability :
>1000 times
Application :
CATV
Polarization dep loss :
<0.2dB
Description

ROHS ISO Fiber Optic Loopback OM3 24 Fiber 500 Times Durability For CATV

Applications
• 100GbE CFP/CXP Optical Testing
• Research and Development
• Manufacturing Test
• Troubleshooting
• Quality Control
• Training

Features :

1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;

2; Different size & color boot option;

3; Low insertion loss; High return loss;

4; 100% interferometer measurement available;

Connector type

MPO

Fiber type

Multimode, single mode

Operating wavelength range

850nm 1330nm

Test wavelength

850nm 1330nm

End grinding type

APC UPC

End grinding type

MPO:typical refers to ≤0.4dB, the maximum index ≤0.75dB

Return loss

d≥50dB

Suitable for cable type

MPO: ribbon or bundled cable

Repeatability

≤0.1dB

Exchangeability

≤0.2dB

Durability

500 times of plugging and unplugging, typical index ≤0.2dB

Vertical tension

≥120N (except 0.9 sheath) or customer specified

Stored temperature

-40 to +85

Operating temperature

-20 to +70

Our Services & Strength

* Systematic high-speed optics design, automatic production and test capability.

* Strict reliability design and test capability.

* Strong customization ability and abundant experience.

* Strong and stable relationships with key component suppliers.

* Prompt response and fast delivery.

FAQ

Q1. About the price?
Re. We usually quote within 12 hours after we confirm the technical data of your products.

Q2. What's the payment method?
Re. We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.

Q3. What are your terms of payment?
Re. 30% in advance,and 70% before shipment

Q4. How to ship the items to me?
Re. Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

Q5. How long is your delivery time?
Re. The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.

Q6. Can you send me a free sample?
Re. Yes,We are willing to send free sample,if you would like to pay the shipping costs.

Q7. Do you accept OEM or ODM?
Re. Yes,we're factory. any your customized requirements we can do our best to help you realize.
