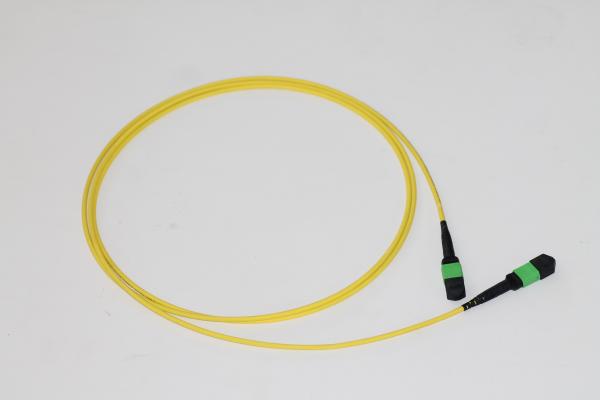

5m MPO Female Single Mode Fiber Patch Cord 12 Fibers OS2 Elite Trunk Cable Yellow
5m MPO Female Single Mode Fiber Patch Cord 12 Fibers OS2 Elite Trunk Cable Yellow
5m MPO Female Single Mode Fiber Patch Cord 12 Fibers OS2 Elite Trunk Cable Yellow
5m MPO Female Single Mode Fiber Patch Cord 12 Fibers OS2 Elite Trunk Cable Yellow
Specifications
Brand Name :
SUNWISE
Model Number :
MPO/APC
Place of Origin :
MADE IN CHINA
MOQ :
Negotiable
Supply Ability :
1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
Application :
Telecommunication
Fiber type :
G657A2, G652D, OS1
Product name :
Optic patch cable
Connector :
MPO/MTP
Cable type :
12F
Fiber mode :
SM/MM
Price :
Negotiable
Packaging Details :
jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft
Delivery Time :
jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Payment Terms :
Western union,T/T,PayPal
Description

5m MPO Female Single Mode Fiber Patch Cord 12 Fibers OS2 Elite Trunk Cable Yellow


MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 10/40/100G high-density data center applications.

Features

Low Insertion Loss

High Return Loss

Good Repeatability

Good Exchangeability

High Temperature Stabilit

Applications

Optic-fiber Communication Systems

Optic-fiber Data Communications

Optic-fiber Access Networks

Optic-fiber CATV

LAN

Test Equipment

Optic-fiber Sensors

Product Specifications

Connector A

MPO Female (pinless)

Connector B

MPO Female (pinless)

Fiber Mode

OS2 9/125 μm SM

Wavelength

1310/1550 nm

Polish Type

APC to APC

Minimum Bend Radius

10 mm

Insertion Loss

0.35 dB Max. (0.15 dB Typ.)

Return Loss

≥ 60 dB

Attenuation at 1310 nm

≤ 0.32 dB/km

Attenuation at 1550 nm

≤ 0.18 dB/km

Jacket OD

3.0 mm

Cable Jacket

LSZH

Installation Tensile Load

100 N

Long-Term Tensile Load

50 N

Storage Temperature

-40°C to 85°C

Operating Temperature

-10°C to 70°C

10G-10G Structured Fiber Cabling Accomplished by Deploying MPO Cables, Fiber Patch Cables and FHD Series Cable Management

5m MPO Female Single Mode Fiber Patch Cord 12 Fibers OS2 Elite Trunk Cable Yellow



Test Assured Program

3D interferometer provides verification of MTP/MPO polishing process and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.
