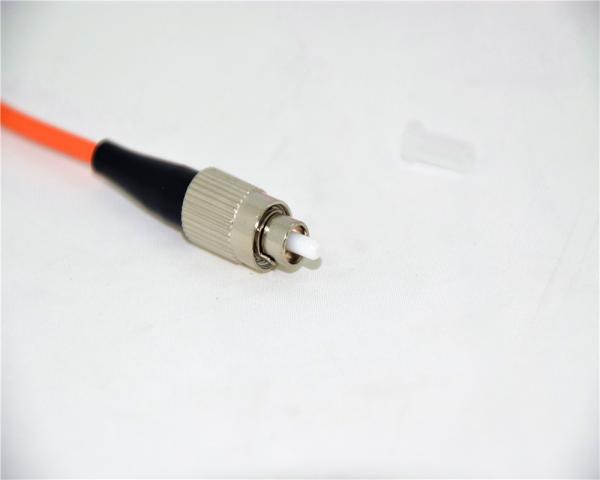

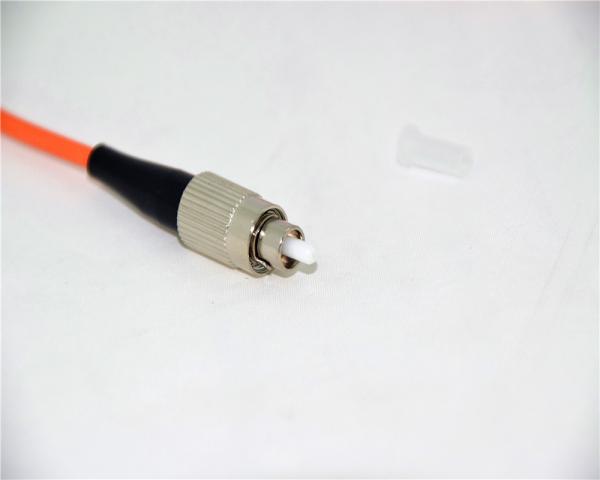

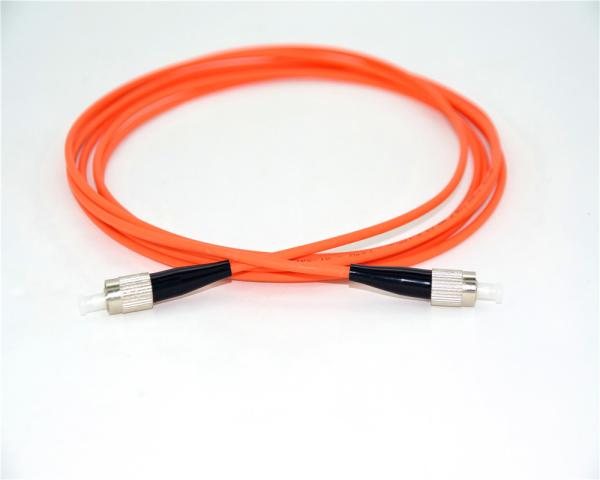

OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm
OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm
OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm
OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm
OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm
OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm
OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm
OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm
OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm
OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm
Specifications
Brand Name :
SUNWISE
Model Number :
FC UPC to FC UPC
Place of Origin :
Made In China
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft
Cable Jacket :
LSZH
Polarity :
A(Tx) to B(Rx)
Minimum Bend Radius :
10mm
Attenuation at 1310 nm :
0.36 dB/km
Polish Type :
UPC to UPC
Connector Type :
FC to FC
Delivery Time :
jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Payment Terms :
Western union,T/T,PayPal
Supply Ability :
1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
Description

OS2 LSZH Fiber Optic Patch Cable Single Mode FC UPC to FC UPC 1310nm / 1550nm

The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Connector Type

FC to FC

Polish Type

UPC to UPC

Fiber Mode

OS2 9/125μm

Wavelength

1310/1550nm

Insertion Loss

≤0.3dB

Return Loss

≥50dB

Fiber Grade

G.657.A1 (Compatible with G.652.D)

Minimum Bend Radius

10mm

Attenuation at 1310 nm

0.36 dB/km

Attenuation at 1550 nm

0.22 dB/km

Fiber Count

Simplex

Cable Diameter

2.0mm

Cable Jacket

LSZH

Polarity

A(Tx) to B(Rx)

Operating Temperature

-20~80°C

Storage Temperature

-40~80°C

Features:
Stable and high quality
Meet IEC, JIS, Bellcore international standard requirements
High performance and cost effective
Mass and flexible production meeting various demand
Custom assemblies available upon request
OEM available upon request


Application:

• Optical access network
• Optical-fiber CATV
• A local area network(LAN)
• Test Equipment

What is your quality control for your fiber optic product ?

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.
