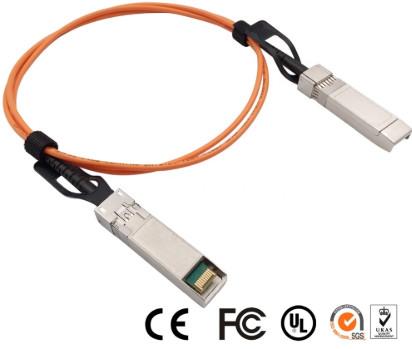

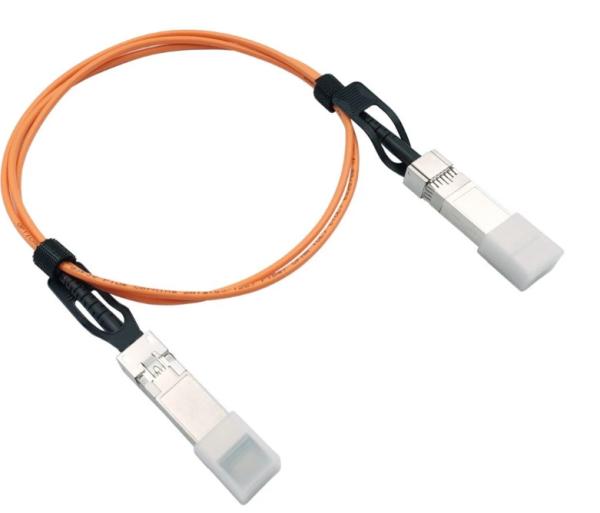

QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible
QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible
QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible
QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible
QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible
QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible
QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible
QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible
QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible
QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible
Specifications
Brand Name :
SUNWISE
Model Number :
qsfp
Certification :
ce ROHS
Place of Origin :
CHINA
MOQ :
Negotiable
Product name :
10g SFP ER 40km
Wavelength :
850nm 1310nm 1550nm
Fiber type :
SMF
Application :
FTTH FTTB FTTX Network
Operating temperature :
DC to 70 degree
Connector type :
SC,Duplex LC,LC/UPC
Date rate :
1.25Gbps
Lead time :
1-7 days
Price :
Negotiable
Packaging Details :
jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft
Delivery Time :
jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Payment Terms :
Western union,T/T,PayPal
Supply Ability :
1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
Description

QSFP+ To QSFP+ Fiber Optic Transceiver Module Networking Cable Cisco Compatible

Products Description

Electrical interface compliant to SFF-8431
Hot Pluggable
850nm VCSEL transmitter, PIN photo-detector receiver
Up to 300m on OM3 MMF
Operating case temperature: 0 to 70℃
All-metal housing for superior EMI performance
RoHS compliant (lead free)

Description
QSFP active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4. Wiitek QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

QSFP+ AOC Specifications

Parameter
Description
Module Form Factor
40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel
Protocols Supported
40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel
Channel Data Rate
Rate 1 to 40.3125Gbps
BER
<10-12
Operating Case Temperature
0 to + 70ºC
Storage Temperature
-20 to + 85ºC
Supply Voltage
3.5V
Supply current
230mA per end typical
Management Interface Serial
I2C (Supports SFF8472)

Features

.Full duplex 4 channel 850nm parallel active optical cable
.Transmission data rate up to 10.3Gbit/s per channel
.SFF-8436 QSFP+ compliant
.Hot pluggable electrical interface
.Differential AC-coupled high speed data interface
.4 channels 850nm VCSEL array
.4 channels PIN photo detector array
.Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
.Low power consumption <1.5W
.Operating case temperature 0°C to +70°C
.3.3V power supply voltage
.RoHS 6 compliant

Applications

Infiniband transmission at 4ch SDR, DDR and QDR
40GBASE-SR4 40G Ethernet
Data Centers
