Specifications
Brand Name :
SWDM
Model Number :
DM87
Certification :
ISO9001,RoHS,CE,ROSH N Type Attenuator
Place of Origin :
CHINA
MOQ :
Negotiable
Product name :
fiber optic adapter
Color :
Green,Red
Type :
Singlemode
Application :
FTTH FTTB FTTX Network
Material :
PVC,ABS PC
Connector type :
SC,FC
Operating temperature :
-40~+75℃
Durability :
>1000time
Wavelength :
1310nm/1550nm/850nm/1300nm
Warranty :
1 Year
Price :
Negotiable
Packaging Details :
jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft
Delivery Time :
jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Payment Terms :
Western union,T/T,PayPal
Supply Ability :
1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
Description

WDM 2RFout digital AGC MMIC CATV Active Optical Receiver / Mini FTTH Optical Node

Product Description

optical node is a compact in-door optical node especially designs for FTTH application. It designs with a single MMIC chip, compared with the two-stage amplifier structure, it has the characteristics of high integration, high performance, excellent anti-jamming performance. In addition, it can achieve best linearity and low noise figure with lowest power consumption by power saving sill. It also achieves digital AGC control skill by I2C interface. It provides a high-quality and high-performance FTTH network solution for cable TV operators.

Feature

Single MMIC chip solution;

RF bandwidth : 47 ~ 1002 MHz;

Output level: > 80dBuV (@AGC(-9 ~ 0 dBm) power input);

wide optical power input range: -18 ~ +2 dBm;

Digital AGC control and range: -9 ~ 0 dBm;

MER: >39.2dB @>-9dBm,RFsource ≥ 80dBuV

CNR: >57dB @>-11dBm,RFsource ≥90dBuV

Specification

Item
Description
Value
Unit
Conditions / Notes
Optical Specifications (Forward Path)
1
Operating Wavelength
1550 ± 10
nm
2
PON Pass Wavelength
1310,1490
nm
(1260~1360), (1480~1500)
3
Isolation
Pass band
≥35
dB
λ = 1550nm
Reflect band
≥20
dB
λ = 1310nm, λ = 1490nm
4
Insert loss
Pass band
≤0.8
dB
λ = 1550nm
Reflect band
≤0.6
dB
λ = 1310nm, λ = 1490nm
5
Optical Return Loss
≥45
dB
6
Optical Power Input Range
-18 ~ +2
dBm
Recommended Range: -9 ~ 0
AGC Range
-9 ~ 0
dBm
RF Specifications (Forward Path)
7
Bandwidth
47 ~ 1002
MHz
8
Flatness
±0.75
dB
At 25 ℃
9
RF impedance
75
Ohm
10
Output level
>80
>76
>70
dBuV
@AGC(-9 ~ 0), RFsource = 80 dBuV
@ -11dBm, RFsource = 80 dBuV
@ -15dBm, RFsource = 80 dBuV
11
Output return Loss
16
dB
TypicalTypical
Analog TV Parameters
Test channel
59
CH(PAL-D)
535.25MHz
12
OMI
3.8
%
13
CNR①
=59
>57
>51.7
dB
@-9dBm,RFsource >90dBuV
@-11dBm,RFsource >90dBuV
@-17dBm,RFsource >90dBuV
14
CTB
≤-65
dB
15
CSO
≤-65
dB
Digital TV Parameters
16
OMI
4.3
%
17
MER
>39.2
>36.2
>31
dB
@-9dBm,RFsource = 80dBuV
@-11dBm,RFsource = 80dBuV
@-17dBm,RFsource = 80dBuV
18
BER
<1.0E-9
dB
@-17dBm,RFsource = 80dBuV
Environmental Parameters
19
Operating Temperature
-25 ~ 85
℃
20
Storage Temperature
-40 ~ 85
℃
21
Storage Humidity
≤95
%
Non- condensation
22
Power consume
<1
W

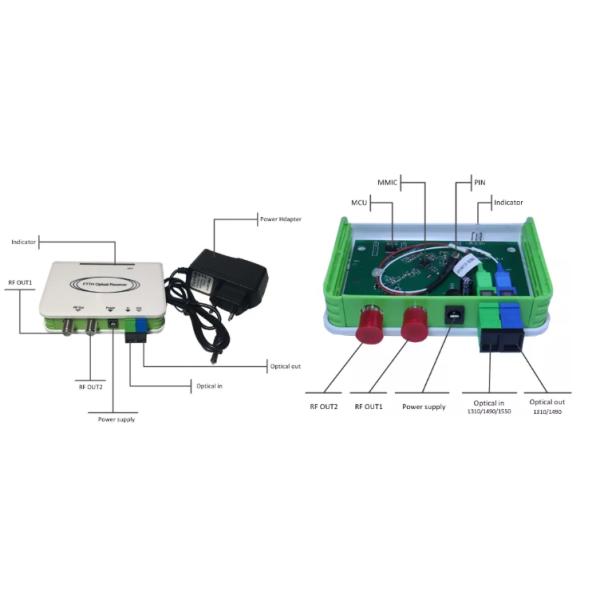

User Interface
23
Optical Connector Type
FC/APC or SC/APC
Optional
24
Power interface
DC5V/0.5A
External adapter
25
RF Output Connector
1 or 2
Optional
26
Optical Power Indicator
Three color lights
Red: > 0 dBm
Green: 0 ~ -11 dBm
Orange: <-11 dBm

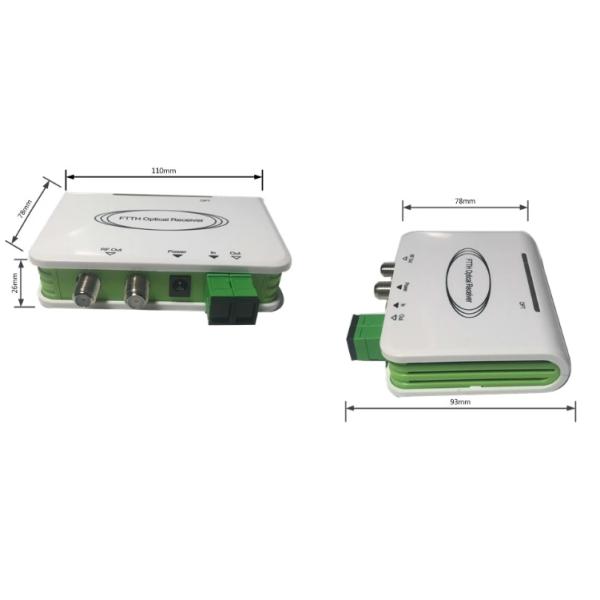

27
Size
110×90×25
mm
28
Weight
0.10
kg
Note: ①The max CNR is 59dB
