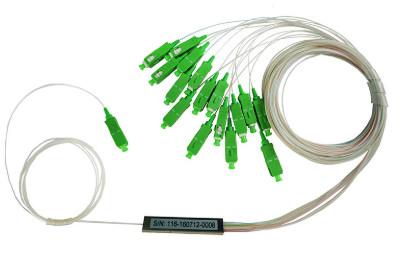

SC APC FTTH Fiber Optic 1x16 G657A1 fiber PLC Splitter / Mini Steel Tube
SC APC FTTH Fiber Optic 1x16 G657A1 fiber PLC Splitter / Mini Steel Tube
SC APC FTTH Fiber Optic 1x16 G657A1 fiber PLC Splitter / Mini Steel Tube
SC APC FTTH Fiber Optic 1x16 G657A1 fiber PLC Splitter / Mini Steel Tube
SC APC FTTH Fiber Optic 1x16 G657A1 fiber PLC Splitter / Mini Steel Tube
SC APC FTTH Fiber Optic 1x16 G657A1 fiber PLC Splitter / Mini Steel Tube
Specifications
Brand Name :
SWPLC
Model Number :
PLC-116
Certification :
RoHS,CE
Place of Origin :
CHINA
MOQ :
Negotiable
Color :
Blue /Beige /Green
Insertion loss :
≤ 0.2dB(SM&MM)
Application :
FTTH FTTB FTTX Network,Telecommunication/Fiber Optic CATV/Multimedia
Connector type :
Dul LC/SC/FC/ST
Return loss :
UPC≥55dB
Fiber type :
SM Bend Insenstive
Warranty :
1 Year
Price :
Negotiable
Packaging Details :
jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft
Delivery Time :
jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Payment Terms :
Western union,T/T,PayPal
Supply Ability :
1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
Description

SC APC FTTH Fiber Optic 1x16 G657A1 fiber PLC Splitter / Mini Steel Tube

Features

* Excellent Mechanical,Small Size

* High Reliability

* Low insertion Loss and low Polarization Dependent loss

* High channel counts

* Excellent Environmental Stability and Widely Used

Applications

* FTTx Deployments(GPON/BPON/EPON)

* Cable television (CATV)

* Local area networks (LAN)

* Test equipment

* Passive optical networks(PON)

Specifications

The detail information are in the forms below

1xN PLC Splitter Specification
Operating Wavelength(nm) 1260~1650
Fiber Type G657A1 or as customers' order
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Insertion Loss (dB) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Temperature Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Return Loss (dB) 55/50
Operating Temperature -40~+85
Directivity (dB) ≥ 55
Storage Temperature -40~+85

2xN PLC Splitter Specification
Operating Wavelength(nm) 1260~1650
Fiber Type G657A1 or as customers' order
Port Configuration 2x2 2x4 2x8 2x16 2x32 2x64 2x128
Insertion Loss (dB) 4.0 7.6 11.0 14.4 17.5 21.0 24.5
Loss Uniformity (dB) 0.6 1.0 1.2 1.5 1.8 2.2 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.35 0.4 0.4
Wavelength Dependent Loss(dB) 0.3 0.4 0.5 0.5 0.5 0.5 0.5
Temperature Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5 0.5
Return Loss (dB) 55/50
Operating Temperature -40~+85
Directivity (dB) ≥ 55
Storage Temperature -40~+85

Order Information

PLC Splitter Type-----Input/Output -----Input Tube Type------Input Tube Length-----Output Tube Type-----Output Tube Length

Other Information

Package: 1 pc/ box, 20 pcs/carton or as your requirement

Packing
Simple package :It is suit for shipping by DHL, FEDEX, TNT,ect. Small packing size will save a lot of shipping freight.
Details: 1pce/ plastic bag , 20pcs/box
Simple package
Details:1pce/box
