CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material
CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material
CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material
CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material
CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material
CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material
CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material
CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material
CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material
CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material
Specifications
Brand Name :
WDM CATV
Model Number :
SW85
Certification :
ISO9001,RoHS,CE
Place of Origin :
CHINA
MOQ :
Negotiable
Product name :
fiber optic adapter
Type :
Singlemode,Single mode/ Multi-mode
Application :
FTTH FTTB FTTX Network
Material :
ABS PC
Durability :
>1000time
Storage temperature :
-40℃~+75℃
Warranty :
3 years
Price :
Negotiable
Packaging Details :
jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft
Delivery Time :
jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Payment Terms :
Western union,T/T,PayPal
Supply Ability :
1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
Description

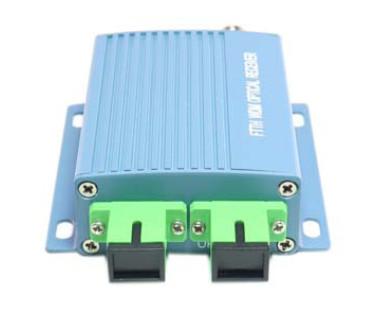

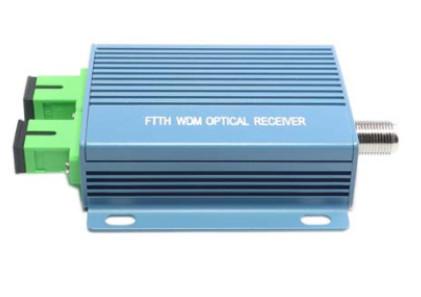

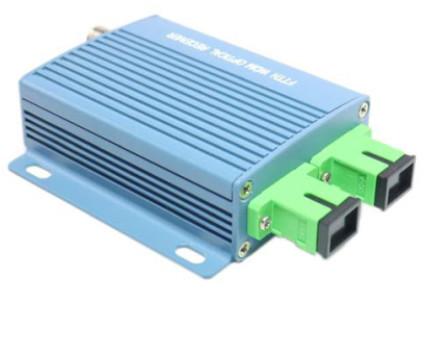

CATV FTTH Fiber Optic Mini Passive Optical Receiver WDM ABS PC Material

Product Description

optical receiver is specifically designed for CATV FTTH network. Its main feature is low power consumption, small Volume
and high reliability. Adopting aluminum alloy shell. It is an ideal product to build FTTH CATV network.Built-in WDM,can be
satisfied with one optical fiber transmission television signals(CATV)+ broadband data(PON),Separate receiving 1550 - nm
wavelength section of CATV signals and output PON signals (1490/1310 nm)

Feature

Using high quality E -O photoelectric conversion and GaAs amplifier integrated optical receiving module.
Built-in WDM can realize single-fiber home (1490/1310/1550nm) tri-network convergence applications.
Built-in optical isolator, input to achieve 1490/1310nm isolation.
SC/APC or FC/APC or custom optical connectors, metric or imperial RF interfaces.
RF channel all GaAs low noise amplifier device.
High quality aluminum alloy shell, good anti-interference and shielding.
Output voltage: no power supply

Specification

Input optical power
2dBm~-10dBm
Receive Wavelength
1550nm
Optical Return Loss
＞45 dB
Bypass Wavelength
1310/1490nm
Optical connector form
FC/APC or SC/APC or FC/PC or SC/PC
Responsively
≥0.9A/W
Frequency Range
47~1000MHz
Optical Fiber Type
Single Mode
In-band flatness
±1dB@45~1006MHz
RF Connector
F-female or F-male
RF output reflection
≥16dB@ 47~550MH ; ≥14dB@1006MHz
CNR
≥51dB
Output level
62dBuV@0dBm input power
CTB
≥65dB
Output port number
1
CSO
≥62dB
RF output impedance
75Ω
Product net size
72×68×25mm
Operating temperature
-20℃ ~+55℃
Product net weight
0.076kg
Note: Test conditions: 59 PAL-D analog television channel signals at 550 MHz frequency range, in the range of 550 MHz to 862 MHz,
under specified link loss conditions.
The digital modulation signal is transmitted within the rate range, the level of the digital modulation signal (within the 8 MHz
bandwidth) is 10 dB lower than the carrier level of the analog signal, and the optical receiver input optical power is 0 dBm,
measuring C/N, CTB, CSO.

FAQ
Q1. Do you provide sample service?
A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

Q2. What about the MOQ?
A: Most products have a minimum order quantity, but some stocks can accept small orders.

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT international express service. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q4: How long is the guarantee of the product?
A: According to the type of product,We offer 1-3 years warranty to our formal products.

Q5: What about delivery time?
A: We need 1-3 days to handling the sample, and 5-15 days to process our normal goods.
