FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
Specifications
Brand Name :
SW
Model Number :
SUNWISE
Certification :
ISO9001,RoHS,CE,ROSH N Type Attenuator
Place of Origin :
CHINA
MOQ :
Negotiable
Type :
Single mode/ Multi-mode
Application :
FTTH FTTB FTTX Network,indoor/outdoor,Network
Wavelength :
1310nm/1550nm/850nm/1300nm
Warranty :
3 years
Fiber type :
G657A2
Price :
Negotiable
Packaging Details :
jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft
Delivery Time :
jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
Payment Terms :
Western union,T/T,PayPal
Supply Ability :
1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
Description

FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty

Quick Detail:

  1. SC-SC DX SM Fiber Cable
  2. Low insertion loss, high return loss
  3. User friendly, compact size
  4. PVC or LSZH jacket
  5. PC/UPC polish
  6. Good exchangeability and repeatability
  7. Comply with Telcordia GR-326-CORE specification

Applications:

Videos

Active device termination

Premise installations

Telecommunication networks

Local area networks (LANs)

Data processing networks

Wide area networks (WANs)

Industrial, medical and military

FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years WarrantyFTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years WarrantyFTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years WarrantyFTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years WarrantyFTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty

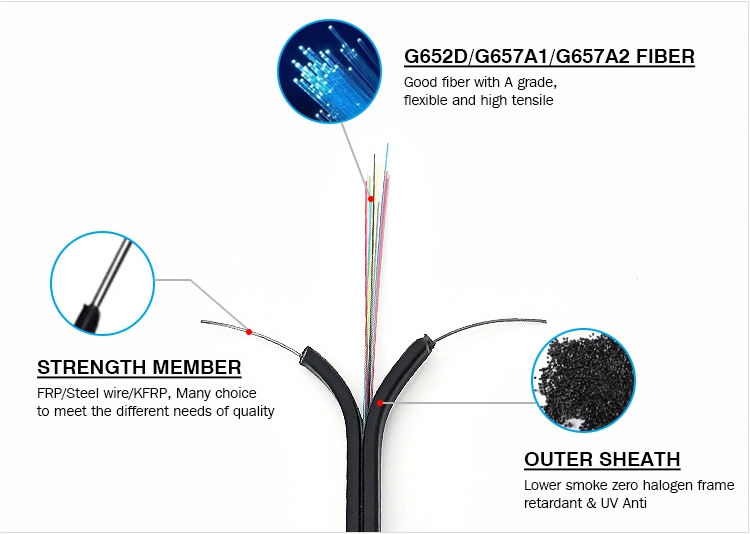

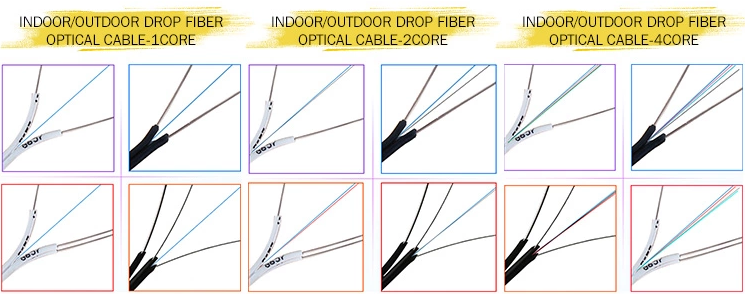

Fiber count 1F/2F/4F
Attenuation 1310nm:≤0.36 1550nm:≤0.22
Color Of fiber Blue Orange Green Brown
Fiber Type G652D/G657A1/G657A2
Strength member Steel wire/FRP/KFRP
Outer sheath LSZH Lower smoke zero halogen frame retardant & UV Anti

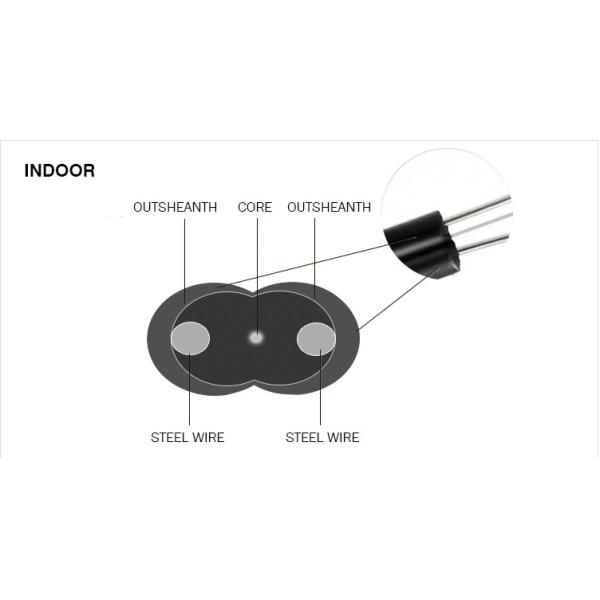

Cable Diameter dimensions 2.0( Height) × 3.0W ± 0.1 mm(width)
Operation temperature range -20 ℃ to + 70 ℃
Installation temperature range -0 ℃ to + 60 ℃
Transport and storage temperature range -20 ℃ to + 70 ℃
Tension Load (N) Short term :800N Long term :500N
Crush Load(N) Long term 1000 N/100mm Short term:2200N/100mm
Minimal installation bending radius 30 x OD
Minimal operation bending radius 15 x OD

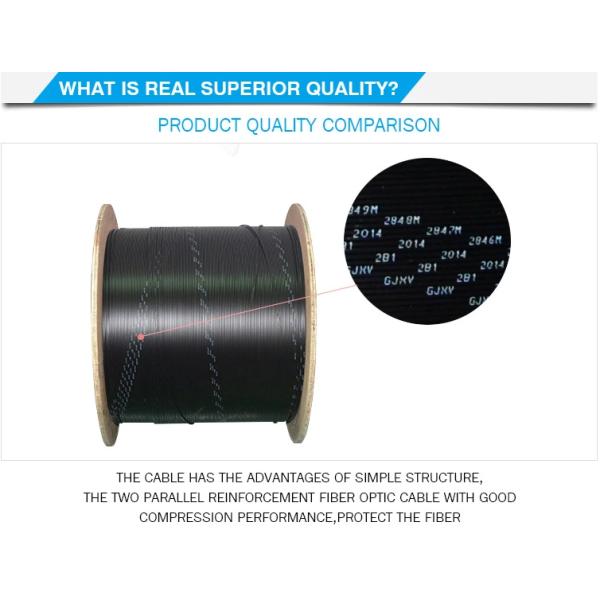

Cable marking The marking length 1meter apart , as required

FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty

FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty
