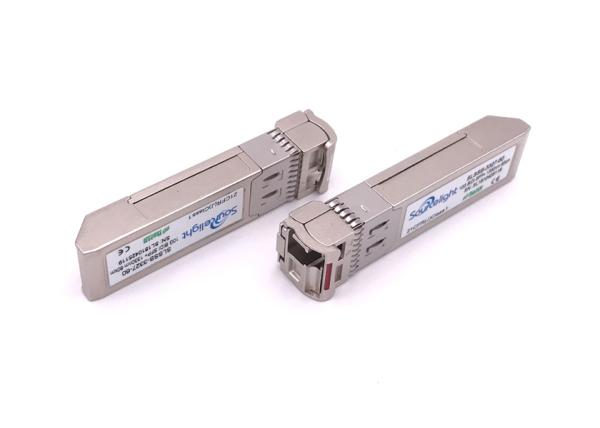

10g Sfp+ Optical Transceiver For Tx1330 Rx1270nm 60km data center
10g Sfp+ Optical Transceiver For Tx1330 Rx1270nm 60km data center
10g Sfp+ Optical Transceiver For Tx1330 Rx1270nm 60km data center
10g Sfp+ Optical Transceiver For Tx1330 Rx1270nm 60km data center
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
SFP+ 60km BIDI
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
200PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc Independent Box.
Datarate :
10GBASE
Wavelength :
TX1330 RX1270NM
Distance :
60km on SMF
Connector :
Simplex LC/UPC
DOM DDM :
YES
TX Laser :
DFB
Description

10g Sfp+ Bidi Optical Transceiver For Tx1330 Rx1270nm 60km data center

Overview
The SFP+ BIDI 60KM series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-ER/EW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
The SFP+ BIDI 60KM module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm;.The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section consists of a APD photodiode integrated with a TIA.

Features

  • Supports 9.95Gb/s to 10.3Gb/s data rates
  • Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
  • Single 3.3V Supply
  • Up to 60km on 9/125um SMF
  • A:1270nm DFB Laser transmitter,1330nm APD receiver
  • B:1330nm DFB Laser transmitter,1270nm APD receiver
  • SFP+ MSA SFF-8431 Compliant
  • Digital Diagnostic SFF-8472 Compliant
  • RoHS compliant and Lead Free
  • Operating case temperature:Standard: 0 ~ 70 °C


Parameter

Package (Form Factor)BIDI SFP+ 60KM
Data Rate (typical)10.3 Gb/s
Centre WavelengthTx1330nm/Rx1270nm
Distance60km
DiagnosticsDigital Monitor
TransmitterDFB Laser
ReceiverPIN photo detector
TX Output Power (dBm)+1~+5
RX Sensitivity (dBm)-20
Low/High Case Temperature0°C~70°C
Voltage Supply (typical)3.3v
ConnectorSimplex LC/UPC

Application
  • 10GBASE-ER at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • Other Optical Links

10g Sfp+ Optical Transceiver For Tx1330 Rx1270nm 60km data center
Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

Sourcelight BIDI SFP+

BIDI (WDM) SFP+
P/NData RateDistanceWavelengthFPPDMedia
BIDI SFP+ 20KM10G/ps20KM1330DFBPINSM
BIDI SFP+ 20KM10G/ps20KM1270DFBPINSM
BIDI SFP+ 40KM10G/ps40KM1330DFBPINSM
BIDI SFP+ 40KM10G/ps40KM1270DFBPINSM
