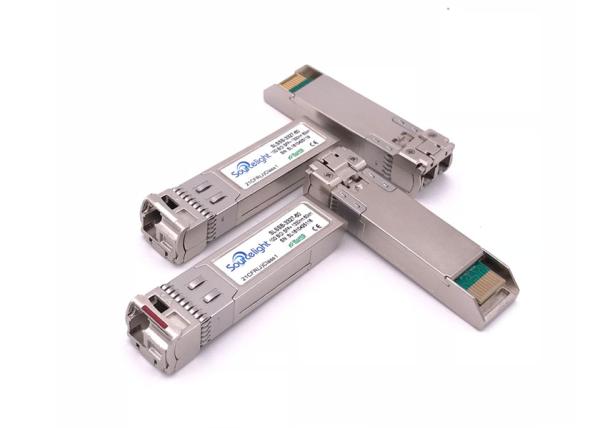

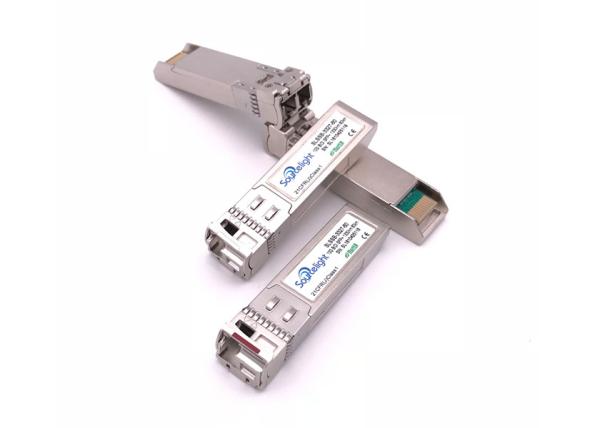

10gbps Bidi Wdm Sfp+ Optical Transceiver 20km With Lc Connector
10gbps Bidi Wdm Sfp+ Optical Transceiver 20km With Lc Connector
10gbps Bidi Wdm Sfp+ Optical Transceiver 20km With Lc Connector
10gbps Bidi Wdm Sfp+ Optical Transceiver 20km With Lc Connector
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
BIDI SFP+ 20km
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc Independent Box.
Datarate :
10Gbps
Wavelength :
TX1330 RX1270NM
Distance :
20km
Connector :
Simplex LC/UPC
Transmitter :
DFB Laser
Receiver :
PIN
Description

10gbps Bidi Wdm Sfp+ Optical Transceiver 20km With Lc Connector

Description

The 10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor Supports 10GBASE Ethernet and OTU2/OTU2e Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link

Features

  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR, single LC connector for bi-directional application, over20km SMF

  • Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”

  • 1270/1330nm DFB transmitter, PIN photo-detector

  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers

  • Part number(-40°C to 85°C):

  • -AO+-WDM12-R20, 1270TX/1330RX

  • - AO+-WDM13-R20, 1330TX/1270RX

  • line side, client side loopback function

  • Advanced firmware allow customer system encryption information to be stored in transceiver

  • ROHS compliant

Applications

  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes

Parameter

Package (Form Factor) BIDI SFP+ 20km
Data Rate (typical) 10.3 Gb/s
Centre Wavelength Tx1270nm/Rx1330nm
Distance 20km
Diagnostics Digital Monitor
Transmitter DFB Laser
Receiver PIN photo detector
TX Output Power (dBm) -1~+5
RX Sensitivity (dBm) -15
Connector Simplex LC/UPC

Application
  • 10GBASE-ER at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • Other Optical Links

10gbps Bidi Wdm Sfp+ Optical Transceiver 20km With Lc Connector

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

Sourcelight BIDI SFP+ 10G

BIDI (WDM) SFP+
P/N Data Rate Distance Wavelength FP PD Media
BIDI SFP+ 20KM 10G/ps 20KM TX1330 DFB PIN SM
BIDI SFP+ 20KM 10G/ps 20KM TX1270 DFB PIN SM
BIDI SFP+ 40KM 10G/ps 40KM TX1330 DFB PIN SM
BIDI SFP+ 40KM 10G/ps 40KM TX1270 DFB PIN SM
