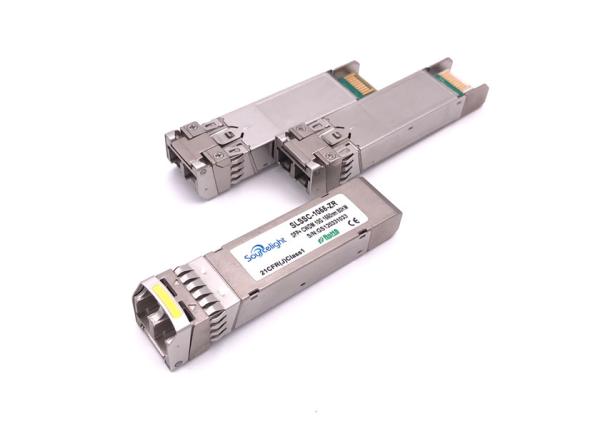

1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance
1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance
1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance
1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
SFP+ CWDM ZR 80km
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
200PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc Independent Box.
Datarate :
10Gbps
Distance :
80km
Diagnostics :
Digital Monitor
TX Power :
0~+3dBm
Sensitivity :
-25dBm
Connector :
Duplex LC/UPC
Description

1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance

Overview

10GBASE SFP+ modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.It is a mallest 10G form factor Supports 10GBASE Ethernet and OTU2/OTU2e Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link.

Features

  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ER/EW
  • Electrical interface compliant to SFF-8431 specifications.
  • 2-wire interface for management specifications compliant with SFF 8472
  • Operating case temperature: 0 to 70 °C
  • All-metal housing for superior EMI performance
  • Low power consumption, less than1.6 w
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • RoHS compliant

Applications

  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes

Parameter

Package (Form Factor) CWDM SFP+ ZR 80KM
Data Rate (typical) 10.3 Gb/s
Centre Wavelength 1470nm~1610nm
Distance 80km
Diagnostics YES
Transmitter Cooled EML Laser
Receiver APD photo detector
TX Output Power (dBm) 0~+3
RX Sensitivity (dBm) -25
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC/UPC

Application

  • 10GBASE-LR at 10.3125Gbps
  • Other optical links

Quality Certification

Quality and standards are the foundation of Sourcelight. We are dedicated to providing customers with outstanding, standards-compliant products and services. Sourcelight has passed many quality system verifications, like CE, RoHS, FCC, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

1470nm - 1610nm Fiber Optic Transceiver Module 10gbase Cwdm Sfp+ 80km Distance
