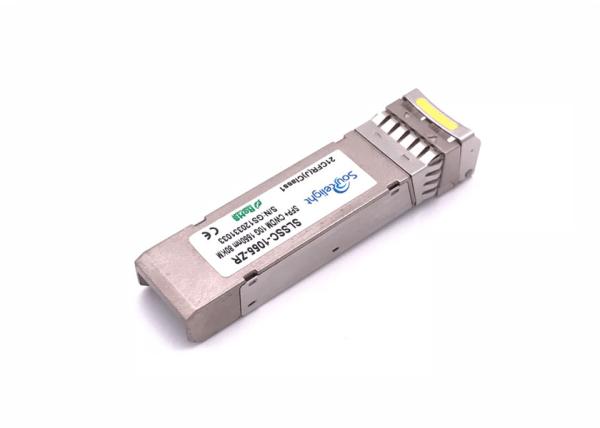

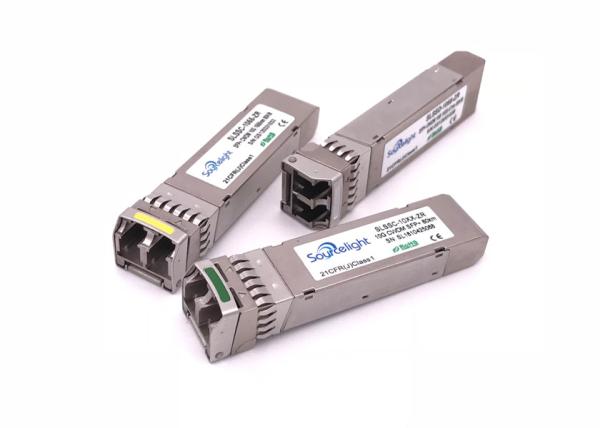

10g Cwdm 80km Single Mode Sfp+ Optical Transceiver For 2x 4x 8x Fibre Channel
10g Cwdm 80km Single Mode Sfp+ Optical Transceiver For 2x 4x 8x Fibre Channel
10g Cwdm 80km Single Mode Sfp+ Optical Transceiver For 2x 4x 8x Fibre Channel
10g Cwdm 80km Single Mode Sfp+ Optical Transceiver For 2x 4x 8x Fibre Channel
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
CWDM SFP+ ZR 80KM
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc Independent Box.
Datarate :
10Gbps
Wavelength :
1470~1610nm
Distance :
80km
Diagnostics :
Digital Monitor
Receiver :
APD photo detector
TX Power :
0~+3dBm
Description

10g Cwdm 80km Single Mode Sfp+ Optical Transceiver For 2x 4x 8x Fibre Channel

Overview

tranceivers for Gigabit Sourcelight SFP+ZR CWDM Transceiver is a “Limiting module”, designed for 10G Ethernet, and 2G/4G/ 8G/10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.Ethernet and Fibre Channel applications

Features

  • Compliant with SFF-8431,SFF-8432 and IEE802.3ae
  • 10GBASE-ZR, and 2G/4G/ 8G/10G Fiber Channel applications.
  • Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
  • Cooled EML transmitter and APD receiver
  • link length up to 70km (1450ps/nm@G652 fiber)
  • Low Power Dissipation 1.4W Typical (Maximum:2W)
  • -5ºC to 70ºC Operating Case Temperature
  • Single 3.3V power supply
  • Diagnostic Performance Monitoring of module
  • RoHS compliant and lead free

Parameter

Package (Form Factor) CWDM SFP+
Data Rate (typical) 10.3 Gb/s
Centre Wavelength 1470nm~1610nm
Distance 80km
Diagnostics Digital Monitor
Transmitter Cooled EML Laser
Receiver APD photo detector
TX Output Power (dBm) 0~+3
RX Sensitivity (dBm) -25
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC/UPC

Application
  • 10GBASE-ZR
  • 10G Fiber Channel
  • CWDM Network
