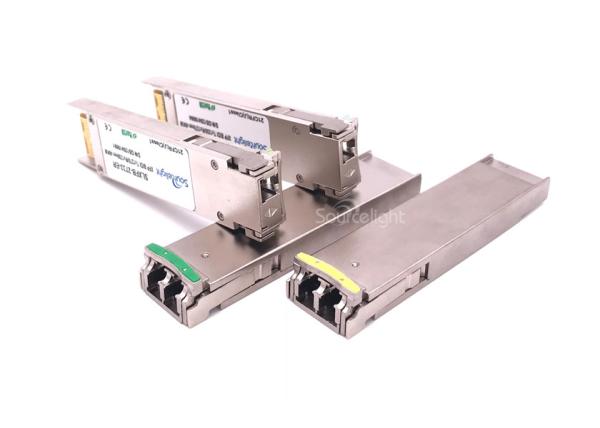

XFP-10G-BX20 Transceiver Module 1330nm TX / 1270nm RX BIDI XFP 20KM
XFP-10G-BX20 Transceiver Module 1330nm TX / 1270nm RX BIDI XFP 20KM
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
XFP-10G-BX20
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Week
Delivery Time :
Shipped in 1~3 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc gift Box.
PN :
XFP-10G-BX20
Wavelength :
TX1330NM RX1270NM
Distance :
20KM ON MMF
Receiver :
PIN
Application :
Datecom 10G Ethernet / 10x FC
Connector :
SIMPLEX LC/UPC
Description

XFP-10G-BX20 10GBASE-BX 1330nm TX / 1270nm RX 10.3Gbps SM 20km bidi​

Overview

BIDI XFP 20KM is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 20km on SMF.

The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Features

  • Supports 9.95Gb/s to 10.5Gb/s bit rates
  • Hot-pluggable XFP footprint
  • Maximum link length of 20km with SMF
  • 1270/1330nm DFB laser Transmitter and 1330/1270nm Receiver
  • XFP MSA package with LC connector
  • No reference clock required
  • Loop Back Support.
  • +3.3V,+1.8V power supply
  • Power dissipation <2W
  • Compatible with RoHS
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C

Parameter

Package (Form Factor) BIDI XFP 20KM
Data Rate (typical) 10.3 Gb/s
Centre Wavelength Tx1330nm/Rx1270nm
Distance 20km
Diagnostics Digital Monitor
Transmitter DFB Laser
Receiver PIN photo detector
TX Output Power (dBm) -2~+2
RX Sensitivity (dBm) -14
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Simplex LC/UPC

Application
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • 10GBASE-BX 10G Ethernet

XFP-10G-BX20 Transceiver Module 1330nm TX / 1270nm RX BIDI XFP 20KM

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
