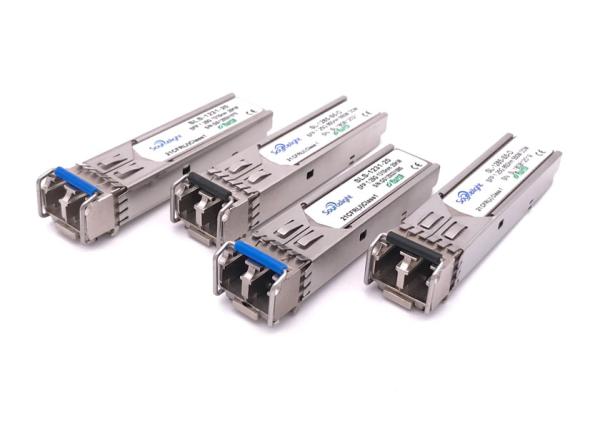

1310nm 10km Lc Sfp Transceiver Module For Smf Sfp-1ge-Lx PIN photo detector
1310nm 10km Lc Sfp Transceiver Module For Smf Sfp-1ge-Lx PIN photo detector
1310nm 10km Lc Sfp Transceiver Module For Smf Sfp-1ge-Lx PIN photo detector
1310nm 10km Lc Sfp Transceiver Module For Smf Sfp-1ge-Lx PIN photo detector
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
1000BASE SFP LX
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc gift box.
Datarate :
1.25G
Wavelength :
1310NM
Distance :
10KM
Voltage Supply :
3.3v
Receiver :
PIN photo detector
Connector :
Duplex LC/UPC
Description

1.25g 1310nm 10km Lc Sfp Optical Transceiver For Smf Sfp-1ge-Lx

Overview

The SFP LX transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

  • Dual data-rate of 1.25Gbps/1.063Gbps operation
  • 1310nm FP laser and PIN photo detector for 20km transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring:
  • Internal Calibration or External Calibration
  • Compatible with SONET OC-24-LR-1
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature:
  • Standard : 0 to +70°C
  • Industrial : -40 to +85°C

Parameter

Package (Form Factor) SFP LX
Data Rate (typical) 1.25 Gb/s
Centre Wavelength 1310nm
Distance 20km
Diagnostics Digital Monitor
Transmitter Fabry-Perot Laser
Receiver PIN photo detector
TX Output Power (dBm) -9~-3
RX Sensitivity (dBm) -23
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC/UPC

Application
  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems
