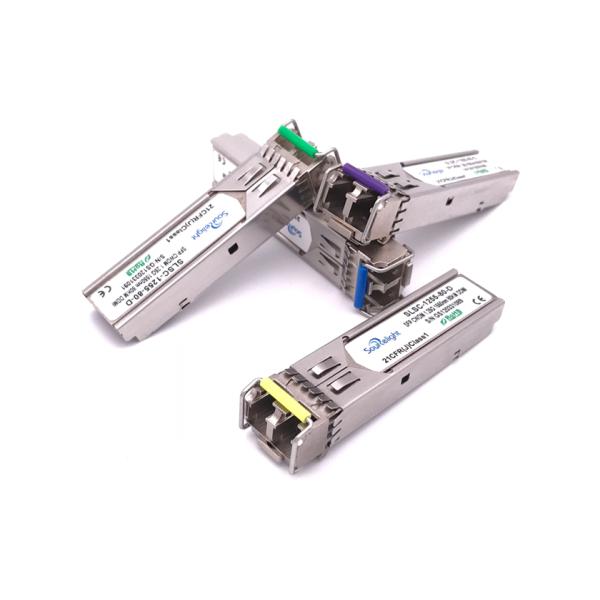

Dwdm Sfp Optical Single Mode Transceiver , Gigabit Sfp Module 1.25gbps 120km
Dwdm Sfp Optical Single Mode Transceiver , Gigabit Sfp Module 1.25gbps 120km
Dwdm Sfp Optical Single Mode Transceiver , Gigabit Sfp Module 1.25gbps 120km
Dwdm Sfp Optical Single Mode Transceiver , Gigabit Sfp Module 1.25gbps 120km
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
1000BASE SFP40KM
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc gift box.
Datarate :
1.25G
Wavelength :
C-band CH17~CH61
Distance :
120KM
Transmitter :
DWDM DFB Laser
Receiver :
APD photo detector
Connector :
Duplex LC/UPC
Description

Dwdm Sfp Optical Single Mode Transceiver , Gigabit Sfp Module 1.25gbps 120km

Overview

Sourcelight DWDM SFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded DFB laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Gigalight DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage, laser temperature and TEC current.

Features

  • Wavelength selectable to C-band ITU-T grid wavelengths
  • Suitable for use in 100GHz channel spacing DWDM systems
  • DWDM SFP MSA Compliant
  • Dual data-rate of 1.25Gbps/1.063Gbps operation
  • Up to 2.67Gb/s data rate
  • OC24 Long Reach 80km
  • Cold Start up Wavelength Compliance
  • Low Power Dissipation <1.3W Maximum
  • -5ºC to 70ºC Operating Case Temperature
  • Diagnostic Performance Monitoring of module temperature, supply
  • Voltages, laser bias current, transmit optical power, receive optical power,
  • Laser temperature and TEC current
  • Extended link budget with APD receiver technology
  • RoHS compliant and lead free

Parameter

Package (Form Factor) DWDM SFP
Data Rate (typical) 1.25 Gb/s
Centre Wavelength C-band CH17~CH61
Distance 80km
Diagnostics Digital Monitor
Transmitter DWDM DFB Laser
Receiver APD photo detector
TX Output Power (dBm) 0~+4
RX Sensitivity (dBm) -32
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC/UPC

Application

  • SFP Transceivers for DWDM SONET/ SDH
  • Ethernet IEEE 802.3ae
  • Fiber Channel

Dwdm Sfp Optical Single Mode Transceiver , Gigabit Sfp Module 1.25gbps 120km

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
