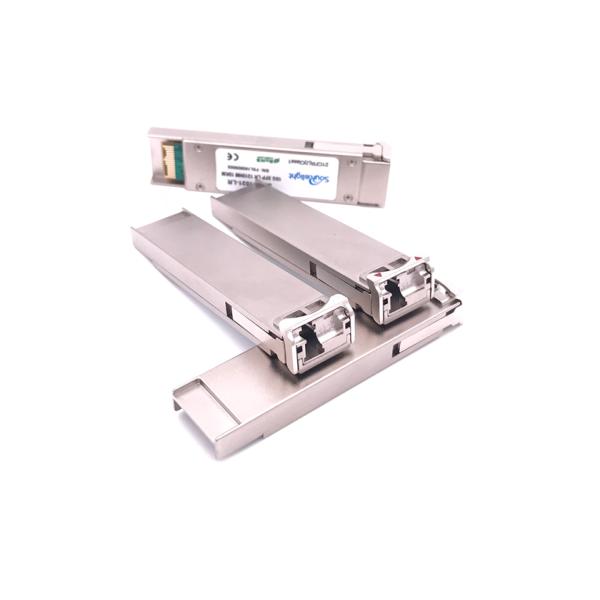

Single mode Optical Transceiver 10g Bidi 60km For Fiber Transceiver Sdh Stm64
Single mode Optical Transceiver 10g Bidi 60km For Fiber Transceiver Sdh Stm64
Single mode Optical Transceiver 10g Bidi 60km For Fiber Transceiver Sdh Stm64
Single mode Optical Transceiver 10g Bidi 60km For Fiber Transceiver Sdh Stm64
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
BIDI XFP 60KM
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500PCS Per Week
Delivery Time :
Shipped in 1~3 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc gift Box.
Product name :
BIDI XFP 60KM
Wavelength :
TX1330nm/RX1270nm
Distance :
60KM
TX Power :
+2~+7dBm
RX Sensitivity :
-20dBm
DDM DOM :
YES
Description

Singlemode Fiber 10g Bidi 60km Xfp Optical Transceiver For Fiber Transceiver Sdh Stm64

Overview

XFP BIDI 60KM is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 60km on SMF.

The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter and the receiver section consists of a APD photodiode integrated with a TIA,. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Features

  • Supports 9.95Gb/s to 10.5Gb/s bit rates
  • Hot-pluggable XFP footprint
  • Maximum link length of 60km with SMF
  • 1270/1330nm DFB laser Transmitter and 1330/1270nm APD Receiver
  • XFP MSA package with LC connector
  • No reference clock required
  • Loop Back Support.
  • +3.3V,+1.8V power supply
  • Power dissipation <2W
  • Compatible with RoHS
  • Built-in digital diagnostic functions
  • Temperature range 0°C to 70°C

Parameter

Package (Form Factor) BIDI XFP 60KM
Data Rate (typical) 10.3 Gb/s
Centre Wavelength Tx1330nm/Rx1270nm
Distance 60km
Diagnostics Digital Monitor
Transmitter DFB Laser
Receiver APD photo detector
TX Output Power (dBm) +2~+7
RX Sensitivity (dBm) -20
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Simplex LC/UPC

Application
  • 10GBASE-ER 10G Ethernet at 10.3125Gbps
  • 10GBASE-EW 10G Ethernet at 9.953Gbps
  • 1200-SM-LL-L 1-0G Fiber Channel at 10.51875Gbps

Single mode Optical Transceiver 10g Bidi 60km For Fiber Transceiver Sdh Stm64

Sourcelight BIDI XFP

P/N Data Rate Distance Wavelength Media Connector
XFP BIDI 20KM 10G/ps 20KM 1330nm SM LC
XFP BIDI 20KM 10G/ps 20KM 1270nm SM LC
XFP BIDI 40KM 10G/ps 40KM 1330nm SM LC
XFP BIDI 40KM 10G/ps 40KM 1270nm SM LC

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
