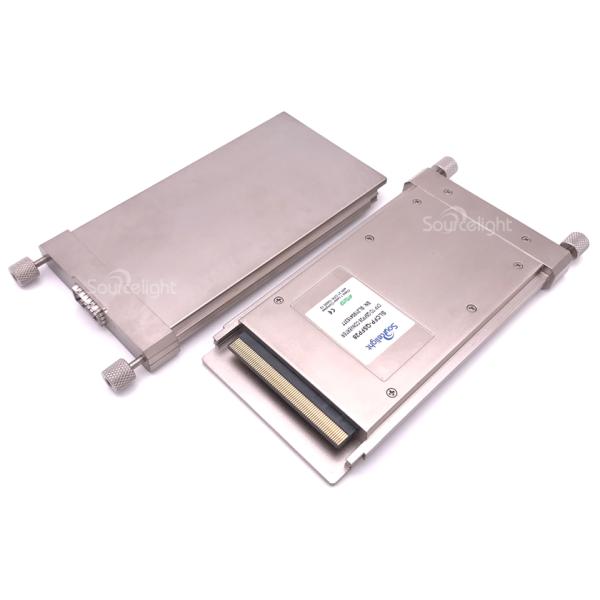

100G Optical Modules , 100g Cfp To Qsfp28 Adapter Converter Module CE Certification
100G Optical Modules , 100g Cfp To Qsfp28 Adapter Converter Module CE Certification
100G Optical Modules , 100g Cfp To Qsfp28 Adapter Converter Module CE Certification
100G Optical Modules , 100g Cfp To Qsfp28 Adapter Converter Module CE Certification
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
CVR-CFP-QSFP28
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS Plastic trays; 1PC Independent Box.
PN :
CFP TO QSFP28 converter
Voltage :
3.3v
Datarate :
100Gbps
Case T. :
0°C~70°C
Diagnostics :
DDMI
Connector :
qsfp28 100G
Description

100G Optical Modules , 100g Cfp To Qsfp28 Adapter Converter Module CE Certification

Overview

The 100G CFP to QSFP28 Adapter module converts a CFP MSA interface to 1-port of 100GE QSFP28. Its compliant with the CFP MSA.

Sourcelight 100G CFP to QSFP28 Adapter module converts 10 bidirectional 10G channels to 4 bidirectional 25G channels operating at up to 28Gbps per channel. The Adapter supports FEC (Forward Error Correction) function; the user can enable the FEC function through the register configuration.

Features

  • Compliant to CFP MSA Management Interface Specification Version 2.2

  • Converts 10 bidirectional 10G lanes to4 bidirectional 25G lanes

  • 1 port 100G QSFP28 TX&RX

  • Support 100G IEEE 802.3bj NRZ FEC

  • Transmission data rate up to 28Gbps per channel

  • OTU4 compatible(FEC is invalid when OTU4 data rate mode is on)

  • MDIO digital diagnostic interface and control capabilities

  • Power class 2 (Adapter<5W max)

  • Hot pluggable electrical interface

  • case temperature: 0°C~ +70°C

  • Single 3.3V supply

  • RoHS 6 compliant

Parameter

Package (Form Factor) 100G CFP TO 100G QSFP28
Data Rate (typical) 100GbPps
Diagnostics ddm
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector QSFP28 100g

Application

  • 100GBE interconnects, IEEE 802.3ba 100GBASE-LR4(Adapter+QSFP28_LR4), IEEE 802.3bm 100GBASE-SR4(Adapter+QSFP28_SR4)

  • High-speed core router connections & Datacom/Telecom switch

  • Data aggregation and backplane applications

  • Proprietary protocol and density application

Ordering Infomation

PN

Description

Cfp to QSFP28

100G Cfp to 100g QSFP28 Adapter module



100G Optical Modules , 100g Cfp To Qsfp28 Adapter Converter Module CE Certification

FAQ(Frequently Asked Questions)
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.

3. Dose your modules compatible to.(HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).

4. What is your warranty time
We promise 3 years warranty for all products shipped from us.

5. Could I use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
