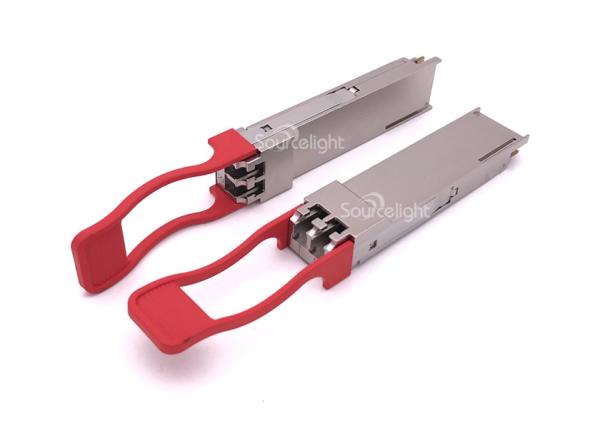

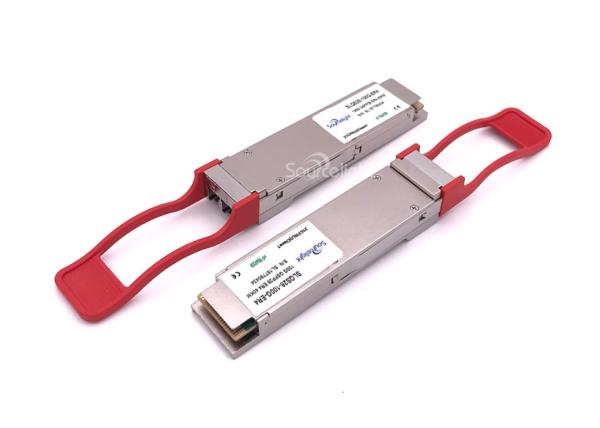

Arista Networks QSFP-100G-ER4 100G QSFP28 Transceiver 1310nm 40km DOM Transceiver Module
Arista Networks QSFP-100G-ER4 100G QSFP28 Transceiver 1310nm 40km DOM Transceiver Module
Arista Networks QSFP-100G-ER4 100G QSFP28 Transceiver 1310nm 40km DOM Transceiver Module
Arista Networks QSFP-100G-ER4 100G QSFP28 Transceiver 1310nm 40km DOM Transceiver Module
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
Arista QSFP-100G-ER4
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Week
Delivery Time :
Shipped in 1~3 days after PO confirmed
Packaging Details :
10PCS Plastic trays; 1PC Independent box.
Data Rate :
103.1Gbps
Distance :
up to 25km links without FEC
Tx Components :
cooled 4x25Gb/s LAN WDM EML TOSA
Receiver :
4x25Gb/s APD ROSA
Interface :
LC Duplex
Cable Type :
SMF
Description

Arista Networks QSFP-100G-ER4 Compatible 100GBASE-ER4 QSFP28 1310nm 40km DOM Transceiver Module

Features

  • Hot pluggable QSFP28 MSA
  • Compliant to IEEE 802.3ba 100GBASE-ER4
  • Up to 25km reach for G.652 SMF without FEC
  • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA
  • Receiver: 4x25Gb/s APD
  • 4x28G Electrical Serial Interface (CEI-28G-VSR)
  • Maximum power consumption 4.5W
  • Duplex LC UPC receptacle

Parameter

Package (Form Factor) QSFP28 ER4
Data Rate (typical) 25.78 Gbps/CH
Centre Wavelength 1295.56,1300.05,1304.58,1309.14nm
Distance 25km on SMF
Diagnostics DDM
Transmitter 4CH Cooled EML
Receiver 4CH APD
TX Output Power -3~+5.2(dBm)
RX Sensitivity -13.8(dBm)
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC UPC


Application

  • 100GBASE-ER4 Ethernet Links
  • Infiniband QDR and DDR interconnects
  • Client-side 100G Telecom connections


Arista Networks QSFP-100G-ER4 100G QSFP28 Transceiver 1310nm 40km DOM Transceiver Module

FAQ(Frequently Asked Questions)
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.

3. Dose your modules compatible to (HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).

4. What is your warranty time
We promise 3 years warranty for all products shipped from us.

5. Could I use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.

6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,including products defects,.we could accept free exchange or return and refund.
