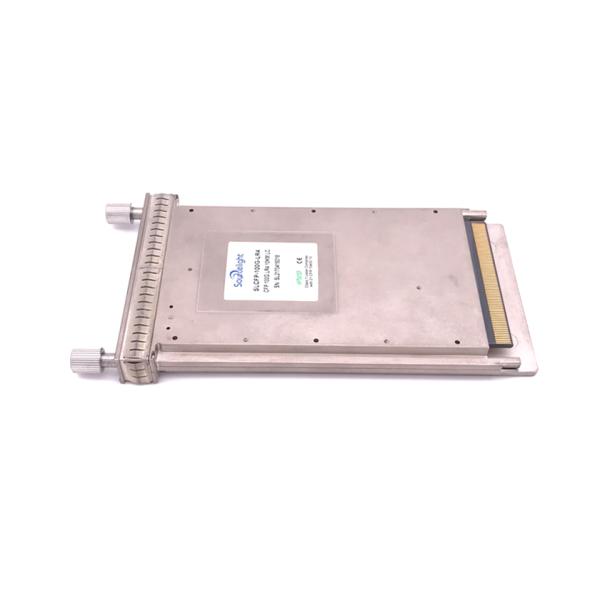

1310nm 100g Optical Transceiver 10km Smf For Cfp-100gb-Lr4
1310nm 100g Optical Transceiver 10km Smf For Cfp-100gb-Lr4
1310nm 100g Optical Transceiver 10km Smf For Cfp-100gb-Lr4
1310nm 100g Optical Transceiver 10km Smf For Cfp-100gb-Lr4
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
CFP-100G-LR4
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1PC Independent Box.
Datarate :
25.78~27.95Gbps PER CH
Distance :
10km on SM FIBER
Transmitter :
4x28Gb/s DFB LASER
Receiver :
PIN photo detector
TX Power :
-4.3~+4.5dBm
RX Sensitivity :
-8.6dBm
Description

1310nm 100g Optical Transceiver 10km Smf For Cfp-100gb-Lr4

Overview

100G CFP LR4 is designed for use in 100 Gigabit Ethernet links and 4x28G OTN client interfaces over single mode fiber.They are compliant with the CFP MSA1, IEEE 802.3ba 100GBASE-LR42 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39). Digital diagnostics functions are available via the MDIO interface. The transceiver is RoHS-6 compliant and lead-free.

Features

  • Hot-pluggable CFP form factor
  • Supports 103.1Gb/s and 112Gb/s aggregate bit rates
  • Power dissipation < 18W
  • RoHS-6 compliant (lead-free)
  • Commercial case temperature range of 0°C to 70°C
  • Single 3.3V power supply
  • Maximum link length of 10km on Single Mode Fiber (SMF)
  • 4x28Gb/s DFB-based LAN-WDM transmitter
  • 10x10G MLD electrical interface
  • Duplex LC receptacles
  • MDIO management interface

Parameter

Package (Form Factor) CFP LR4
Data Rate (typical) 25.78~27.95Gbps/CH
Centre Wavelength 1310nm(Center)
Distance 10KM SMF
Diagnostics Digital Monitor
Transmitter 4x28Gb/s DFB
Receiver PIN photo detector
TX Output Power (dBm) -4.3~+4.5
RX Sensitivity (dBm) -8.6
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC/UPC

Application

  • OTN OTU4 4I1-9D1F
  • 100GBASE-LR4 100G Ethernet

100G CFP2 LR4 Product

PN Description
CFP-100Gb-LR4 100G LR4 CFP Transceiver 1310NM 10km over SMF



1310nm 100g Optical Transceiver 10km Smf For Cfp-100gb-Lr4

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
