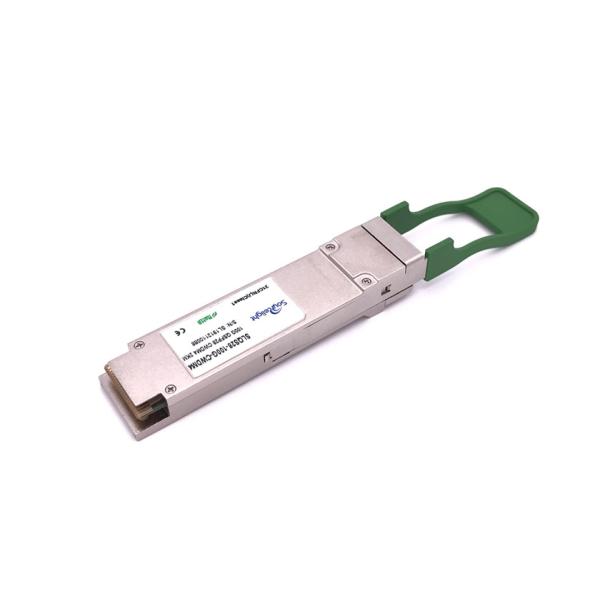

FCC 100G QSFP28 Transceiver Cwdm4 2km On Smf Lc Connector For Data Center And Ethernet
FCC 100G QSFP28 Transceiver Cwdm4 2km On Smf Lc Connector For Data Center And Ethernet
FCC 100G QSFP28 Transceiver Cwdm4 2km On Smf Lc Connector For Data Center And Ethernet
FCC 100G QSFP28 Transceiver Cwdm4 2km On Smf Lc Connector For Data Center And Ethernet
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
QSFP-100G-CWDM4
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10 or 20PCS Plastic trays; 1PC Independent Box.
Product name :
QSFP-100g-CWDM4
TX Output Power :
-6.5~+2.5(dBm)
RX Sensitivity :
-10 (dBm)
Temperature :
0°C~70°C
Voltage (typical) :
3.3v
Connector :
LC UPC Duplex
Description

100g Qsfp28 Transceiver Cwdm4 2km On Smf Lc Connector For Data Center And Ethernet

Overview
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 2km fiber transmission.


The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.


Features

  • QSFP28 MSA compliant
  • CWDM4 lanes MUX/DEMUX design
  • Supports 103.1Gb/s aggregate bit rate
  • 100G CWDM4 MSA
  • Up to 2km onSMF with FEC
  • Operating case temperature: 0 to 70C
  • 4x25G electrical interface (OIF CEI-28G-VSR)
  • Maximum power consumption 3.5W
  • LC duplex
  • RoHS compliant


Parameter

Package (Form Factor) QSFP-100g-CWDM4
Data Rate (typical) 25.78G per CH
Centre Wavelength 1271,1291,1311.1331nm
Distance 2KM
Diagnostics DDM
Transmitter 4CH DFB
Receiver 4CH PIN
TX Output Power (dBm) -6.5~+2.5dbm
RX Sensitivity (dBm) -10dbm
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector LC / UPC Duplex


Application

  • Data Center Interconnect
  • 100G Ethernet
  • Infiniband QDR and DDR interconnects
  • Enterprise networking

FCC 100G QSFP28 Transceiver Cwdm4 2km On Smf Lc Connector For Data Center And Ethernet
QSFP28 100G Products

Product PN Description Connector
QSFP28-100G-SR4 100GBASE SR4 QSFP Transceiver 100m over OM4 MMF MPO-12CORE
QSFP28-100G-LR4 100GBASE LR4 QSFP Transceiver 10km over SMF LC UPC
QSFP28-100G-CWDM4 100GBASE CWDM4 QSFP Transceiver 2km over SMF LC UPC
QSFP28-100G-PSM4 100GBASE PSM4 QSFP Transceiver MPO 500m over SMF MPO-12CORE

FAQ(Frequently Asked Questions)
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.


2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.


3. Dose your modules compatible to (HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).

4. What is your warranty time
We promise 3 years warranty for all products shipped from us.

5. Could I use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.

6. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,including products defects,.we could accept free exchange or return and refund.
