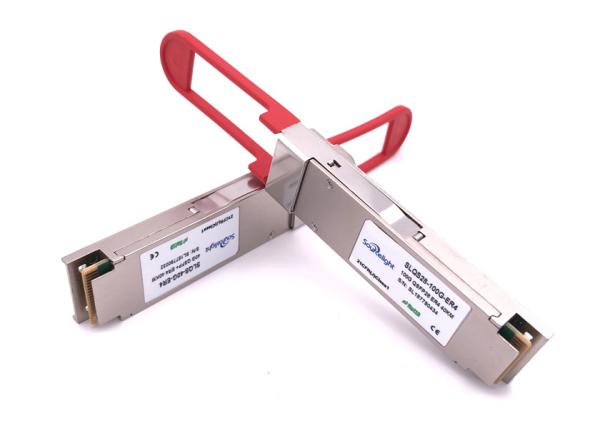

Data Center 100G QSFP28 Transceiver 25.78 Gbps/CH Data Rate / 100G QSFP28 ER4
Data Center 100G QSFP28 Transceiver 25.78 Gbps/CH Data Rate / 100G QSFP28 ER4
Data Center 100G QSFP28 Transceiver 25.78 Gbps/CH Data Rate / 100G QSFP28 ER4
Data Center 100G QSFP28 Transceiver 25.78 Gbps/CH Data Rate / 100G QSFP28 ER4
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
100G QSFP28 ER4
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Week
Delivery Time :
Shipped in 1~3 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1PC Independent box.
Data Rate :
25.78 Gbps/CH
Distance :
up to 25km links without FEC
Transmitter :
cooled 4x25Gb/s LAN WDM EML TOSA
Receiver :
4x25Gb/s APD ROSA
TX Output Power :
-3~+5.2dBm
RX Sensitivity :
-13.8dBm
Description

Data Center 100G QSFP28 Transceiver 25.78 Gbps/CH Data Rate / 100G QSFP28 ER4

Overview

The transceiver module receives 4 channels of 25Gb/s electrical data, which are processed by a 4-channel Clock and Data Recovery (CDR) IC that reshapes and reduces the jitter of each electrical signal. Subsequently, each of 4 EML laser driver IC's converts one of the 4 channels of electrical signals to an optical signal that is transmitted from one of the 4 cooled EML lasers which are packaged in the Transmitter Optical Sub-Assembly (TOSA).

Each laser launches the optical signal in specific wavelength specified in IEEE802.3ba 100GBASE-ER4 requirements. These 4-lane optical signals will be optically multiplexed into a single fiber by a 4-to-1 optical WDM MUX. The optical output power of each channel is maintained constant by an automatic power control (APC) circuit. The transmitter output can be turned off by TX_DIS hardware signal and/or 2-wire serial interface.


Features

  • Hot pluggable QSFP28 MSA
  • Compliant to IEEE 802.3ba 100GBASE-ER4
  • Up to 25km reach for G.652 SMF without FEC
  • Single +3.3V power supply
  • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA
  • Receiver: 4x25Gb/s APD
  • 4x28G Electrical Serial Interface (CEI-28G-VSR)
  • Maximum power consumption 4.5W
  • Duplex LC UPC receptacle
  • RoHS-6 compliant


Parameter

Package (Form Factor) QSFP28 ER4
Data Rate (typical) 25.78 Gbps/CH
Centre Wavelength 1295.56,1300.05,1304.58,1309.14nm
Distance 25km on SMF
Diagnostics DDM
Transmitter 4CH Cooled EML
Receiver 4CH APD
TX Output Power -3~+5.2(dBm)
RX Sensitivity -13.8(dBm)
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector Duplex LC UPC


Application

  • 100GBASE-ER4 Ethernet Links
  • Infiniband QDR and DDR interconnects
  • Client-side 100G Telecom connections

Data Center 100G QSFP28 Transceiver 25.78 Gbps/CH Data Rate / 100G QSFP28 ER4
100G QSFP28 ER4 Product

PN Description
QSFP-100Gb-ER4 100G ER4 QSFP28 Transceiver 25km(without FEC) or 30km(wiht FEC) over SMF



Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
