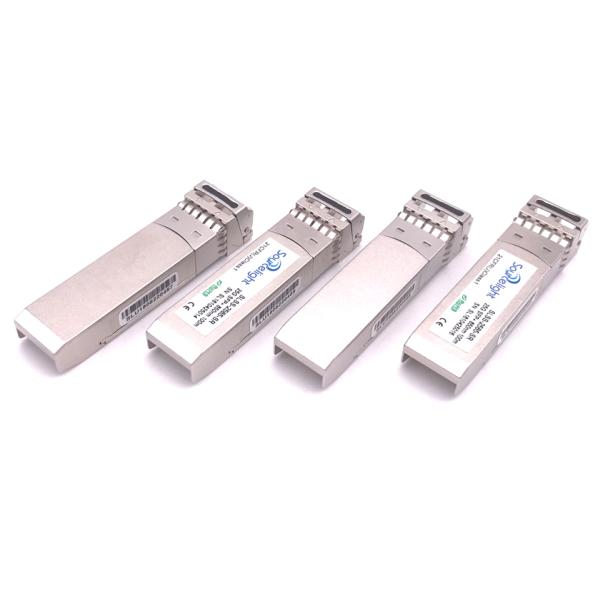

QFX-SFP-25G-SR Compatible SFP28 Transceiver , Fiber Optic Transceiver
QFX-SFP-25G-SR Compatible SFP28 Transceiver , Fiber Optic Transceiver
QFX-SFP-25G-SR Compatible SFP28 Transceiver , Fiber Optic Transceiver
QFX-SFP-25G-SR Compatible SFP28 Transceiver , Fiber Optic Transceiver
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
QFX-SFP-25G-SR
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc gift box.
Product name :
QFX-SFP-25G-SR
Datarate :
25.78 Gb/s
Distance :
100M OM4 MMF
Optical Components :
VCSEL 850nm
DOM Support :
yes
Connector :
Duplex LC UPC
Description

QFX-SFP-25G-SR Compatible 25G SFP28 850nm 100m Transceiver Module

Overview

This Optical Transceiver SFP28 850nm Compatible 25GB SR is designed to transmit and receive optical data over 50 μm multimode optical fiber. The 25G SFP28 SR optical module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled.

Features

  • 25Gb/s serial optical interface

  • 850nm VCSEL transmitter, PIN photo-detector

  • 2-wire interface for management specifications compliant with SFF8472 DDM interface for optical transceivers

  • Operating case temperature: 0 to 70°C

  • All-metal housing for superior EMI performance

  • Low power consumption

  • Advanced firmware allow customer system encryption information to be stored in transceiver

  • Cost effective SFP28 solution, enables higher port densities and greater bandwidth

Parameter

P/N SFP-25G-SR
Datarate 25G/ps
Distance 300M
Wavelength 850nm
Transmitter VCSEL
Receiver PIN
Media MMF
DDM/DOM YES
Connector LC
Application 25 Gigabit Ethernet
Operating Temperature 0℃~ +70℃
Voltage Supply 3.3V
Certification CE/FCC/RoHS/TUV/UL
Brand sourcelight ,Neuter, OEM

Application

  • High-speed storage area networks

  • Computer cluster cross-connect

  • Inter Rack Connection

QFX-SFP-25G-SR Compatible SFP28 Transceiver , Fiber Optic Transceiver

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
