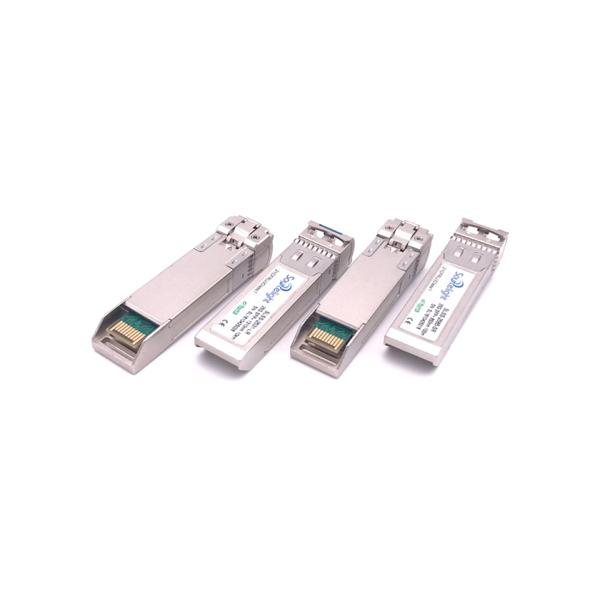

Sfp 16g LW Fiber Optical Transceiver Module 1310nm 10km Lc Connector
Sfp 16g LW Fiber Optical Transceiver Module 1310nm 10km Lc Connector
Sfp 16g LW Fiber Optical Transceiver Module 1310nm 10km Lc Connector
Sfp 16g LW Fiber Optical Transceiver Module 1310nm 10km Lc Connector
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
DS-SFP-FC16G-LW
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500PCS Per Week
Delivery Time :
Shipped in 1~3 days after PO confirmed
Packaging Details :
20PCS Plastic trays; 1pc Independent box.
Product name :
DS-SFP-FC16G-LW
Datarate :
16GBPS
Transmitter :
DFB Laser
Receiver :
PIN photo detector
TX Power :
-6.0~-1.2dBm
Sensitivity :
-12dBm
Description

Sfp Optical Transceiver Module DS-SFP-FC16G-LW 1310nm 10km Sm Fiber

Overview

16G SFP+ LR transceivers, according to 16 Gigabit Small Form Factor Pluggable “SFP+” Multi-Sourcing Agreement (MSA) SFF-8431 Rev. 3.0 and SFF-8472 Rev. 11.0, are designed for use in Fibre Channel links up to 14.025Gb/s data rate and up to 10km link length. They are compatible with FC-PI-5 Rev. 6.10 and SFF-8432.16G SFP+ LR offer commercial operating temperature options.

Features

  • Up to 14.025Gb/s bi-directional data links
  • Electrical interface specifications per SFF-8431
  • Management interface specifications per
  • SFF-8432 and SFF-8472
  • SFP+ MSA package with duplex LC connector
  • Build-in Dual CDR at 14.025Gb/s and bypass at 4.25Gb/s and 8.5Gb/s
  • Uncooled 1310nm DFB Laser
  • Up to 10 km on 9/125um SMF
  • 1.8W maximum power consumption with established link

Parameter

Package (Form Factor) SFP+ 16g LW
Data Rate (typical) 14g
Wavelength 1310nm
Distance 10km
Diagnostics yes
Transmitter DFB
Receiver PIN
TX Output Power (dBm) -5~+2
RX Sensitivity (dBm) -12
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector LC UPC

Application
  • 4.25 / 8.5 / 14.025 Gb/s Fibre Channel Rate

Sfp 16g LW Fiber Optical Transceiver Module 1310nm 10km Lc Connector

16G SFP+

16G SFP Sourcelight PN Description
SFP-FC16G-SW SL-SFP-16G-SR 16GBASE-SR SFP transceiver up to 100m over parallel OM3 multi-mode fiber
SFP-FC16G-LW SL-SFP-16G-LR 16GBASE-LR SFP transceiver, up to 10km over single-mode fiber

FAQ(Frequently Asked Questions)

1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.

2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For big quantity and special products,Please check lead time with our sales.

3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.

4. Dose your modules compatible to (HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to (HP/Extreme/Juniper).

5. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Cash.Could also support Credit terms like NET 7DAYS,NET30 DAYS or COD(cash on delivery) for old customers after credit application is approved.

6. What is your warranty time
We promise 3 years warranty for all products shipped from us.

7. Could I return the products if there is a quality problem?
Yes,if there is a quality problem happen,including products defects,.we could accept free exchange or return and refund.

8. Could I use our own logo and label?
Yes,we could provide a OEM service and make the products with your own label.
