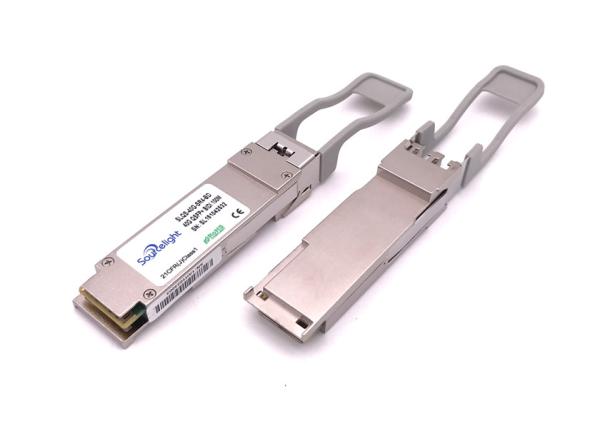

Qsfp-40g-Sr-Bd 40G Optical Transceiver For 150m On Mmf And 500m On Smf
Qsfp-40g-Sr-Bd 40G Optical Transceiver For 150m On Mmf And 500m On Smf
Qsfp-40g-Sr-Bd 40G Optical Transceiver For 150m On Mmf And 500m On Smf
Qsfp-40g-Sr-Bd 40G Optical Transceiver For 150m On Mmf And 500m On Smf
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
Qsfp-40g-Sr4-Bd
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc Independent Box.
Product name :
Qsfp 40g Sr4 Bd
Transmitter :
4CH VCSEL Array Laser
Wavelength :
850nm
TX :
4CH VCSEL Array Laser
RX :
4CH PIN photo detector Array
Connector :
Duplex LC UPC
Description

Qsfp-40g-Sr-Bd 40G Optical Transceiver For 150m On Mmf And 500m On Smf

Overview

QSFP BIDI internally multiplexes an XLPPI 4x10G interface into two 20Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 40Gbps into a duplex LC cable. This allows reuse of the installed LC duplex cabling infrastructure for 40GbE application. Link distances up to 100 m using OM3 and 150m using OM4 optical fiber are supported.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end. The electrical interface uses a 38 contact QSFP+ type edge connector. The optical interface uses a conventional LC duplex connector.

Features

  • Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
  • Compliant to QSFP+ SFF-8436 Specification
  • Aggregate bandwidth of > 40Gbps
  • Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
  • QSFP MSA compliant
  • Capable of over 100m transmission on OM3 MMF and 150m on OM4 MMF
  • Single +3.3V power supply operating
  • Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

Parameter

Package (Form Factor) QSFP+ bidi
Data Rate (typical) 10.3 Gbps/CH
Centre Wavelength 850nm
Distance 150m on OM4 MMF
Transmitter 4CH VCSEL Array Laser
Receiver 4CH PIN photo detector Array
TX Output Power -4~+5 (dBm)
RX Sensitivity -11 (dBm)
Low/High Case Temperature 0°C~70°C
Voltage Supply 3.3v (typical)
Connector Duplex LC PC

Application

  • 40 Gigabit Ethernet interconnects
  • Datacom/Telecom switch & router connections
  • Data aggregation and backplane applications
  • Proprietary protocol and density applications

40G QSFP Porducts

QSFP40G Portfolio 　 　
Product
 Type Connector Type
QSFP-40G-SR4-S 40GBASE-SR4, 4 lanes, 850 nm MMF MPO-12
QSFP-40G-LR4-S 40GBASE-LR4, 1310 nm, SMF LC
QSFP-40G-SR-BD 40GBASE-SR-BiDi, duplex MMF LC
QSFP-40G-BD-RX 40GBASE-SR-BiDi, duplex MMF, Monitor LC
QSFP-40G-SR4 40GBASE-SR4, 4 lanes, 850 nm MMF MPO-12
QSFP-40G-CSR4 40GBASE-CSR4, 4 lanes, 850 nm MMF MPO-12
WSP-Q40GLR4L 40GBASE-LR4-Lite, 1310 nm, SMF LC
QSFP-4X10G-LR-S 4x10GBASE-LR MPO-12
QSFP-40G-LR4 40GBASE-LR4, 1310 nm, SMF with OTU3 data-rate support LC
QSFP-40G-ER4 40GBASE-ER4, 1310 nm, SMF with OTU3 data-rate support LC

Qsfp-40g-Sr-Bd 40G Optical Transceiver For 150m On Mmf And 500m On Smf

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
