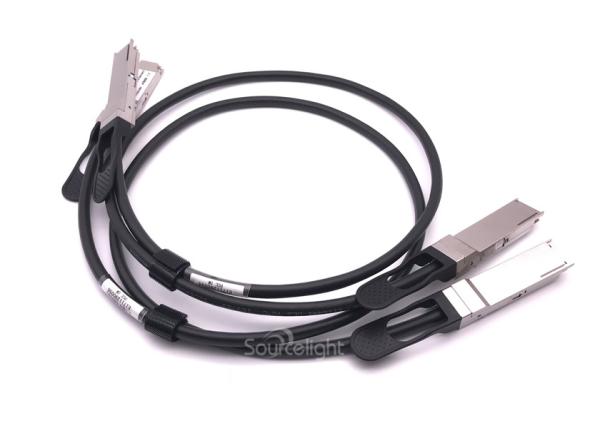

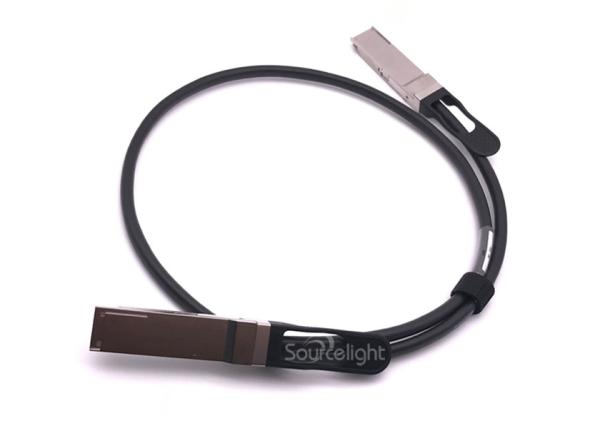

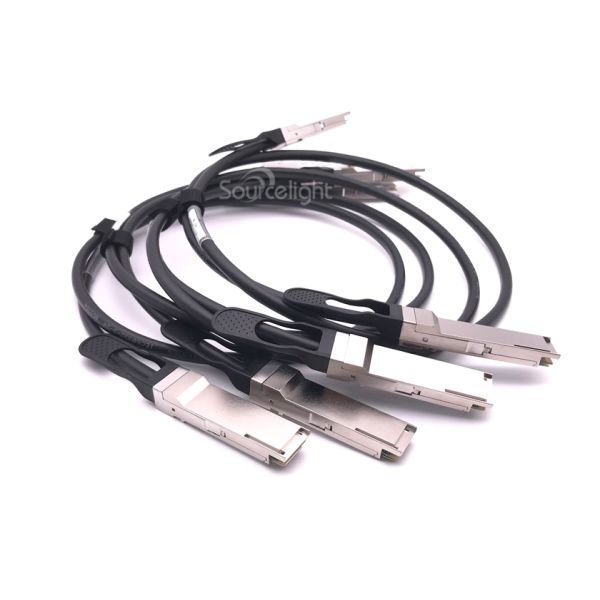

Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m
Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m
Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m
Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
100G QSFP dac
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
1pc Independent packaging.
Product name :
100G QSFP DAC
Datarate :
25.78Gb/s (per channel)
Distance :
Up to 5M
AWG :
24AWG - 30AWG
Connector :
QSFP28
Material :
Copper CABLE
Description

Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m

Overview
The 100G QSFP28 DAC cable assemblies are high performance, cost effective I/O solutions for LAN, HPC and SAN. The high speed cable assemblies meet and exceed 100 Gigabit Ethernet, InfiniBand EDR and temperature requirements for performance and reliability.

Features

  • QSFP28 conforms to the Small Form Factor SFF8665

  • 4-Channel Full-Duplex Passive Copper Cable Transceiver

  • Support data rates : 25.78Gb/s (per channel)

  • Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)

  • IEEE 802.3bj 100GEBASE-CR4

  • Copper link length up to 5m

  • Power Supply :+3.3V

  • Low crosstalk

  • I2C based two-wire serial interface for EEPROM signature which can be customized

  • Operating Temperature: 0~ 70 °C

  • RoHS Compliant

Parameter

Package (Form Factor)

100G QSFP28 DAC Copper Cable

Data Rate (typical)

25.78 Gbps/CH

Distance

Up to 5m COPPER CABLE PASSIVE

Low/High Case Temperature

0°C~70°C

Voltage Supply

3.3v(typical)

Connector

QSFP28 100G

Application

  • 100 Gigabit Ethernet

  • Fiber Channel over Ethernet

  • Data storage and communication industry

  • Switch / router / HBA

  • Enterprise network

  • SAN

  • Data Center Network

Infiniband 100g Qsfp28 Dac Copper Cable For Cable 1m / 3m / 5m / 7m

Other 40G DAC

Part Number Product Description AWG
QFX-QSFP-DAC-1M
QFX-QSFP-DAC-1M 40GBASE-CR4 QSFP+ direct-attach copper cable, 1 meter passive 30
QFX-QSFP-DAC-3M 40GBASE-CR4 QSFP+ direct-attach copper cable, 3 meter passive 30
QFX-QSFP-DAC-5M 40GBASE-CR4 QSFP+ direct-attach copper cable, 5 meters passive 30
QFX-QSFP-DAC-7M 40GBASE-CR4 QSFP+ direct-attach copper cable, 7 meters passive 30

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
