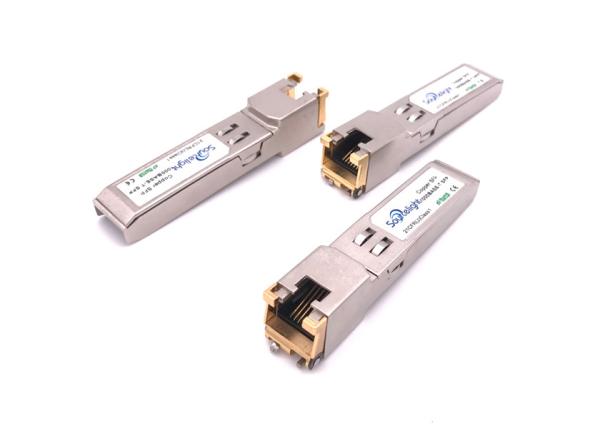

1000base-T Copper Sfp Transceiver Module For Ethernet Rj45 100m Over Cat5 Cable
1000base-T Copper Sfp Transceiver Module For Ethernet Rj45 100m Over Cat5 Cable
1000base-T Copper Sfp Transceiver Module For Ethernet Rj45 100m Over Cat5 Cable
1000base-T Copper Sfp Transceiver Module For Ethernet Rj45 100m Over Cat5 Cable
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
COPPER SFP-T
Certification :
CE/FCC/RoHS
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS Per Week
Delivery Time :
Shipped in 1 days after PO confirmed
Packaging Details :
10PCS or 20PCS Plastic trays; 1pc gift box.
Datarate :
1000BASE-T
Distance :
100m RJ45
Temperature :
0°C~70°C
Connector :
RJ45
Voltage Supply :
3.3v
Description

1000base-T Copper Sfp Transceiver Module For Ethernet Rj45 100m Over Cat5 Cable

Overview

1000BASE SFP Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable.

The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.

Features

  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • TX Disable and RX Los/without Los function
  • Fully metallic enclosure for low EMI
  • Low power dissipation (1.05 W typical)
  • Compact RJ-45 connector assembly
  • Access to physical layer IC via 2-wire serial bus
  • 1000 BASE-T operation in host systems with SERDES interface
  • Operating case temperature range of
  • 0°C to +70°C (Commercial) or -20°C to +85°C (Extend)

Parameter

Package (Form Factor) Copper SFP
Data Rate (typical) 1000Base SERDES
Distance 100m RJ45
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector RJ45

Application

  • 1.25 Gigabit Ethernet over Cat 5 cable

1000base-T Copper Sfp Transceiver Module For Ethernet Rj45 100m Over Cat5 Cable

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
