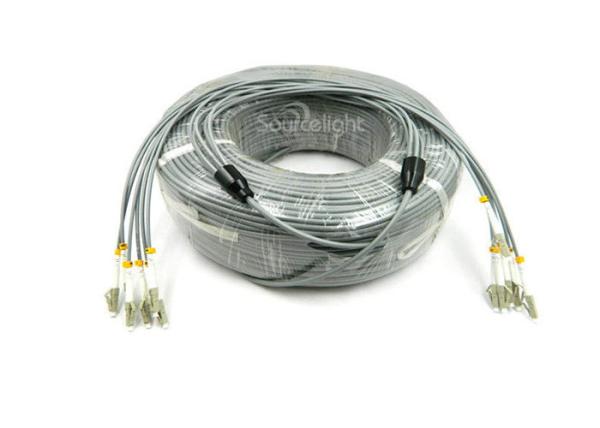

Customized Armored Fiber Optic Patch Cord FC / SC / ST / LC Connector
Customized Armored Fiber Optic Patch Cord FC / SC / ST / LC Connector
Customized Armored Fiber Optic Patch Cord FC / SC / ST / LC Connector
Customized Armored Fiber Optic Patch Cord FC / SC / ST / LC Connector
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
Armored Fiber Optic Patch Cord
Certification :
IS09001-2008.ROHS
Place of Origin :
Shenzhen,China
MOQ :
1pcs
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
5000 Pcs Per Month
Packaging Details :
PE bag, carton box, wooden pallet
Type :
FC / SC / ST / LC Connector
Cover :
Armored
IL :
0.2dB
Cable Color :
gray
Cable :
3.0mm Or 2.0mm or 1.6mm
RL :
55dB
Description

Customized Armored Fiber Optic Patch Cord FC / SC / ST / LC Connector


Overview

Armored Fiber Optic Patch Cable as the name implies, there is an helical stainless steel tape over a buffered fiber surrounded by a layer of aramid and stainless steel mesh with an outer jacket to better protect the cable work well in data center rooms and harsh environments. KOCENT OPTEC LIMITED can supply the armored fiber optic patch cable with different terminal connectors such as SC, FC, LC, ST, SC/APC, FC/APC, LC/APC, ST/APC, E2000, E2000/APC, DIN, MU, SMA, FDDI, ect. With the cable in simplex, duplex, 2 cores or more. Welcome to order our armored fiber optic patch cable in stock.

Raw material​s

  • Plug housing: PBT, UPC/blue, APC/green, MM/beige (RoHS)
  • Inner frame: PBT, white (RoHS)
  • Ferrule: zirconium oxide ceramic material, white (RoHS)
  • Ferrule’s handle: copper (C3602), nickelage (RoHS)
  • Mechanical spring: stainless steel (RoHS)
  • Locating snap ring: copper alloy (HPD59-1), nickelage (RoHS)
  • Snap ring: aluminium alloy 6063 (RoHS)
  • Ring: copper alloy (HPD62), nickelage (RoHS)
  • Boot: nylon or PBT, UPC/blue, APC/green, MM/beige
  • Cable: SM/OM1/OM2/OM3/OM4, PVC/LSZH/OFNP

Features

  • In-line with Telcordia GR-326-CORE standard
  • Low insertion loss, high return loss, high reliability
  • Good repeatability, interchangeability
  • Any diameter of fiber can be chose, 0.9, 2, 3mm ,10g fiber, low smoke and zero halogen can be chosen

Application

  • Fiber-optic communication system
  • Fiber-optic data transmission
  • LAN, CATV
  • Fiber-optic testing system

Specification

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

Customized Armored Fiber Optic Patch Cord FC / SC / ST / LC Connector

Order information

  • For example: SC/UPC-SC/UPC-SM-SX-2.0-5M-LSZH Armored patch cord
  • Type: SX/DX optional
  • Ferrule type: APC/PC
  • Diameter: 0.9, 2.0, 3.0mm
  • Length: 1, 2, 3 to 120m
  • Fiber: SM/OM1/OM2/OM3/OM4
  • Material of jacket: PVC/LSZH/OFNP

OEM/ODM Service
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
