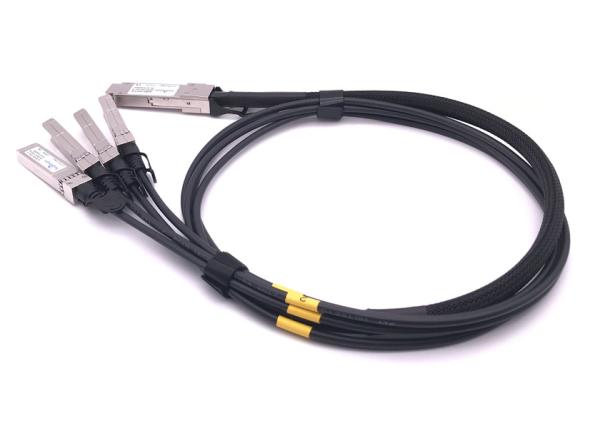

40g Qsfp+ To 4sfp+ Dac Passive Direct Attach Copper Cable 30awg 28awg
40g Qsfp+ To 4sfp+ Dac Passive Direct Attach Copper Cable 30awg 28awg
40g Qsfp+ To 4sfp+ Dac Passive Direct Attach Copper Cable 30awg 28awg
40g Qsfp+ To 4sfp+ Dac Passive Direct Attach Copper Cable 30awg 28awg
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
40G QSFP+ TO 4SFP+ DAC
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500PCS Per Week
Delivery Time :
Shipped in 1~3 days after PO confirmed
Packaging Details :
1pc Independent packaging.
Product name :
40G QSFP+ DAC
Datarate :
10G/CH
Distance :
Up to 5M For Passive
Voltage Supply :
3.3v
Connector :
QSFP+
Temp :
0°C~70°C
Description

40g Qsfp+ To 4sfp+ Dac Passive Direct Attach Copper Cable 30awg 28awg

Overview

The QSFP+ to 4x SFP+ Passive cable assemblies are high performance,cost effective for SFP+ and QSFP+ equipment interconnects . The Hybrid cables are compliant with SFF-8436 and SFF-8431 specifications.

It is offer a low power consumption,short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Features

  • Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431

  • Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)

  • Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)

  • Hybrid cable link length up to 5m (passive limiting)

  • High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector

  • Power Supply :+3.3V

  • Low power consumption: 0.02 W (typ.)

  • Temperature Range: 0~ 70 °C

Parameter

Package (Form Factor)

QSFP-4SFP+ Copper Cable

Data Rate (typical)

10.3 Gbps/CH

Distance

Up to 5m

Low/High Case Temperature

0°C~70°C

Voltage Supply (typical)

3.3v

Connector

QSFP SFP+

Application

  • 40G QSFP+ to 4×10SFP+

  • 10G/40Gigabit Ethernet

  • InfiniBand4x SDR, DDR, QDR

  • Switches, Routers, and HBAs

  • Data Centers

  • Fiber Channel

40g Qsfp+ To 4sfp+ Dac Passive Direct Attach Copper Cable 30awg 28awg

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
