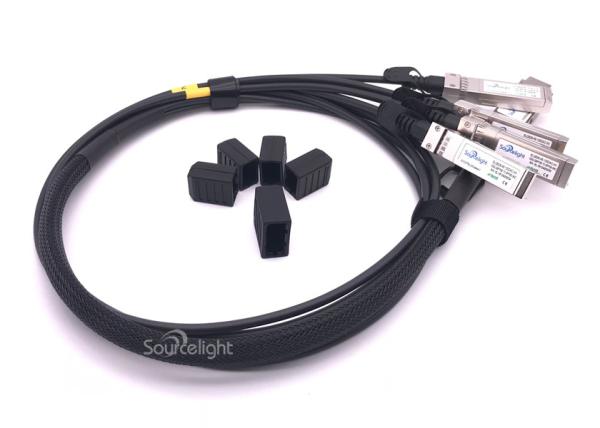

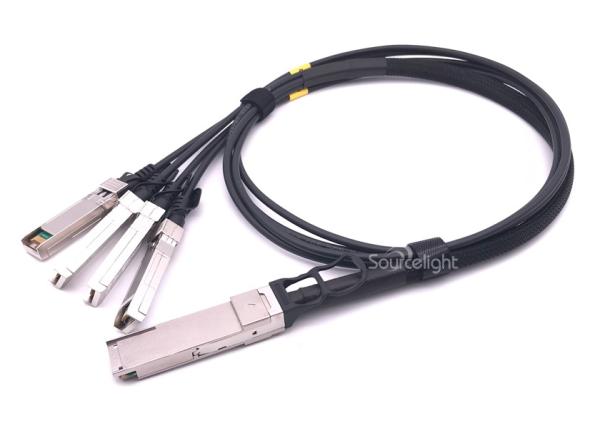

Qsfp Direct Attach Cable To 10g 4sfp Passive Copper Cable 30awg 28awg For Data Center
Qsfp Direct Attach Cable To 10g 4sfp Passive Copper Cable 30awg 28awg For Data Center
Qsfp Direct Attach Cable To 10g 4sfp Passive Copper Cable 30awg 28awg For Data Center
Qsfp Direct Attach Cable To 10g 4sfp Passive Copper Cable 30awg 28awg For Data Center
Specifications
Brand Name :
Sourcelight or OEM
Model Number :
40G QSFP+ TO 10g 4SFP+ DAC
Certification :
CE/FCC/RoHS/TUV/UL
Place of Origin :
Shenzhen,China
MOQ :
1PCS
Price :
Get Latest Price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500PCS Per Week
Delivery Time :
Shipped in 1~3 days after PO confirmed
Packaging Details :
1pc Independent packaging.
Product name :
40G QSFP to 10g sfp+DAC
Datarate :
10G/CH
Distance :
Up to 5M For Passive copper cable
Voltage Supply :
3.3v
Connector :
QSFP+ to 4sfp+
Temp :
0°C~70°C
Description

40g Qsfp Direct Attach Cable To 10g 4sfp Passive Copper Cable 30awg 28awg For Data Center

Overview

The QSFP+ to 4x SFP+ Passive cable assemblies are high performance,cost effective for SFP+ and QSFP+ equipment interconnects . The Hybrid cables are compliant with SFF-8436 and SFF-8431 specifications.

Parameter

Package (Form Factor)

QSFP-4SFP+ Copper Cable

Data Rate (typical)

10.3 Gbps per CH

Distance

Up to 5m copper cable

Low/High Case Temperature

0°C~70°C

Voltage Supply

3.3v (typical)

Connector

QSFP and SFP+

Application

  • 40G QSFP+ to 4×10SFP+

  • 10G/40Gigabit Ethernet

  • InfiniBand4x SDR, DDR, QDR

  • Switches, Routers, and HBAs

  • Data Centers

  • Fiber Channel

Features

  • Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431

  • Support for multi-gigabit data rates :1 Gb/s - 10 Gb/s (per channel)

  • Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)

  • Hybrid cable link length up to 5m (passive limiting)

  • High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector

  • Power Supply :+3.3V

  • Low power consumption: 0.02 W (typ.)

  • Temperature Range: 0~ 70 °C

Others DAC to choose

Part Number

Product Description

AWG

40G QSFP+ Copper Direct-attached Cable

CAB-QSFP-P50CM

40GBASE-CR4 QSFP+ direct-attach copper cable, 0.5 meter passive

30

CAB-QSFP-P1M

40GBASE-CR4 QSFP+ direct-attach copper cable, 1 meter passive

30

CAB-QSFP-P2M

40GBASE-CR4 QSFP+ direct-attach copper cable, 2 meters passive

30

CAB-QSFP-P3M

40GBASE-CR4 QSFP+ direct-attach copper cable, 3 meters passive

30

CAB-QSFP-P4M

40GBASE-CR4 QSFP+ direct-attach copper cable, 4 meters passive

28

CAB-QSFP-P5M

40GBASE-CR4 QSFP+ direct-attach copper cable, 5 meters passive

28

CAB-QSFP-P7M

40GBASE-CR4 QSFP+ direct-attach copper cable, 7 meters passive

28

CAB-QSFP-P9M

40GBASE-CR4 QSFP+ direct-attach copper cable,9 meters passive

24

CAB-QSFP-P10M

40GBASE-CR4 QSFP+ direct-attach copper cable, 10 meters passive

24

40G Active QSFP+ Cable

CAB-QSFP-A7M

40GBASE-CR4 QSFP+ direct-attach copper cable, 7 meters active

30

CAB-QSFP-A10M

40GBASE-CR4 QSFP+ direct-attach copper cable, 10 meters active

28

CAB-QSFP-A15M

40GBASE-CR4 QSFP+ direct-attach copper cable, 15 meters active

28

Qsfp Direct Attach Cable To 10g 4sfp Passive Copper Cable 30awg 28awg For Data Center

Competitive advantage
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
