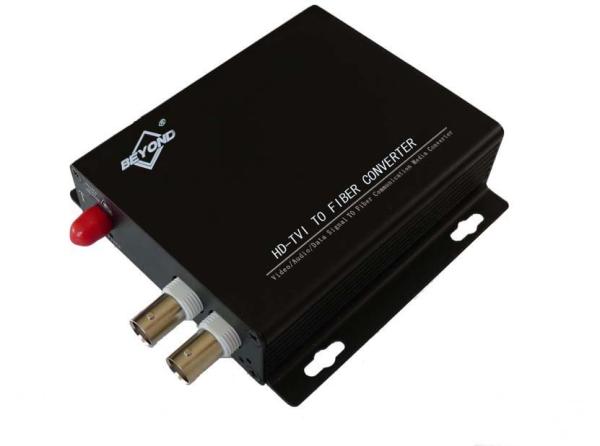

2-ch 720p HD-TVI to fiber multiplexer,2-ch TVI over fiber extender,TVI Transmitter and RX
2-ch 720p HD-TVI to fiber multiplexer,2-ch TVI over fiber extender,TVI Transmitter and RX
Specifications
Place of Origin :
ShenZhen
Brand Name :
Bedond
Certification :
ISO9001
Model Number :
BY-TVI-2VSM001
MOQ :
1 pair
Price :
Negotiable
Packaging Details :
standrad packing
Delivery Time :
3 working days
Payment Terms :
T/T
Supply Ability :
2000 pairs per month
Description

TVI TO Fiber Converter can simultaneously transmit 1-16 channels TVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with 720p/50,720p/60,1080p/25,1080p/30. Lossless non-compression real time transmission.

Specifications

Opitcal:

Wavelength

1310nm&1550nm

Output Power

-8~3dBm

Optic fiber

50/125u multimode,62.5/125u multimode,9/125u single mode

Rx sensitivity

-22dBm

Optical connector

FC,ST,SC (optional)

Distance

0~550M (MM) / 0~20KM (SM)

Video:

Number of Channels

1~16

Input/output impedance

BNC 75Ω (unbalance)

Standard video input/output voltage

1.0Vp-p

Video Bandwidth

60MHz

Sampling Bandwidth

10bit

Sampling Frequency

120MHz

Rise and Fall time

<0.8ns

Optical Signal Intrinsic Jitter

<0.2 UI

Differential Gain

< ±1.5%

Differential Phase

< ±1°

Connector

BNC

Other

Power

DC5V 2A

Power Consumption

≤5W

Temperature

-40ºC ~75ºC

Humidity

10%~90% RH

Unit Weight

1ch :0.75kg, 2ch/4ch/8ch: 1.5KG(pair)

Dimension

1 : 104mm×104mm×28mm

2ch /4ch/8ch: 183mm×154mm×30mm

Installation

Wall mount

MTBF

≥ 100000Hours

TVI TO Fiber Converter System connection diagram

2-ch 720p HD-TVI to fiber multiplexer,2-ch TVI over fiber extender,TVI Transmitter and RX
