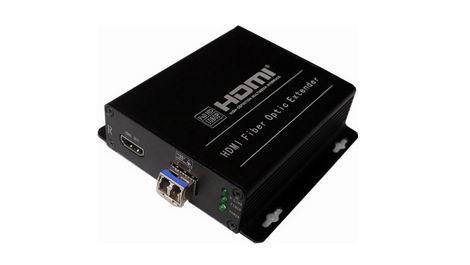

HDMI Fiber Optic Extender via 2 LC optical fiber,uncompressed HDMI video format,up to 10KM with singlemode fiber
HDMI Fiber Optic Extender via 2 LC optical fiber,uncompressed HDMI video format,up to 10KM with singlemode fiber
Specifications
Place of Origin :
shenzhen
Brand Name :
beyond
Model Number :
BY-HDMI-2FSM001
Certification :
ISO9001
Price :
1
Packaging Details :
STANDRED PACKAGE
Delivery Time :
3 Working days
Payment Terms :
T/T
Supply Ability :
10000 PER MONTH
MOQ :
1 Pair
Description

HDMI Fiber Optic Extenderincludes a transmitter and a receiver, which is a high-speed, HDCP compliant fiber optic transport system capable of distributing high resolution HDMI or DVI signals over fiber cable while maintaining flawless image quality. An HDMI input signal from a source device such as a set-top box or Blu-Ray player is converted into light pulses by an optical transmitter module for transmission over two (2) strands of fiber optic cable. On the display side, an optical receiver module converts the light pulses back to an HDMI signal for display on a monitor or projector.

The HDMI Fiber Optic Extender supports optical links using either multi-mode or single-mode fiber. These features make the equipment a powerful solution for digital display applications that require flawless signal quality over extremely long cable runs.

Product feature:

1, Supports 4K (UHD) resolution formats up to 4096x2160 / 24p, 30p

2, Max extension distance 350M(MM fiber)/10KM(SM fiber)

3, Supports 1080p resolution with color depth up to 16 bits/pixel

4, Supports HDMI bit-rates up to 3.4 Gbps/color,10.2 Gbps total


Product specification:

Performance:

Compliance

DVI v1.0, HDMI v1.4, HDCP v1.4

Maximum Pixel Clock Frequency

Supports pixel clock rates up to 340 MHz

Maximum Video Bit Rate

Supports digital signal bit rates up to 3.4 Gbps per color

Supported Color Depth

Supports 1080p resolution with up to 16 bits/pixel

Digital Audio Support

Dolby Digital, Dolby Digital Plus, Dolby True HD and DTS-HD Master Audio

Supported HDTV Formats

Supports all HDTV resolutions including 1080p, 2K and 4K (UHD) formats

Supported PC Resolutions

Supports resolutions up to 4096x2160 / 24p, 30p

Optical:

Optical Transmitter

Laser Source: 1310nm FP / 1310nm DFB / 1550nm DFB

Optical Receiver

PIN Photo Diode O/E Converter

Fiber Cable Type / Max. Length

50/125μ multi-mode optical fiber / 350 meters
9/125μ single-mode optical fiber / 10KM

Connections:

HDMI Input / HDMI Output

19-pin female HDMI connectors

Optical Input / Output

2x female LC optical connectors

Mechanical:

Construction

Extruded Aluminum enclosure with black anodized finish

Dimensions

104 mm x 104 mm x 28 mm

Weight

700g per pair

Environmental:

Operating Temperature

0° to +50° C

Storage Temperature

-20° to +70° C

Humidity (storage / operating)

10% to 90% (non-condensing)

Power Requirements:

Power Source

Both Tx and Rx units must be powered using the supplied external AC power adapters

External AC Power Adapter

Input: 100~240VAC / 50-60Hz, 0.5A Output: 5VDC, 2.0A

Maximum Power Consumption

TX Unit: 3.5 watts RX Unit: 3.5 watts

System design:

HDMI Fiber Optic Extender via 2 LC optical fiber,uncompressed HDMI video format,up to 10KM with singlemode fiber
