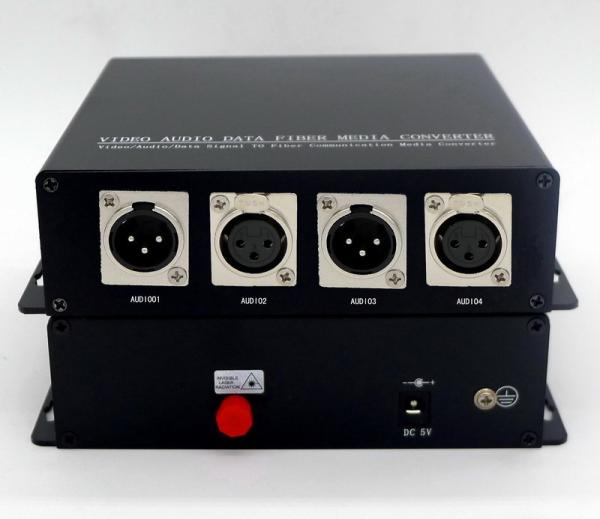

voice to fiber converter,voice over fiber extender,voice to fiber transceiver
voice to fiber converter,voice over fiber extender,voice to fiber transceiver
Specifications
Place of Origin :
ShenZhen,China
Brand Name :
Beyond
Certification :
CE,FCC
Model Number :
BY-audio-2AA-BSM004
MOQ :
5 pair
Price :
Negotiable
Packaging Details :
standard trade carton
Delivery Time :
1-7 working days
Payment Terms :
T/T,Paypal,100% payment before production
Supply Ability :
10000 pairs per month
Description

2 CH BIDI Balance Audio(XLR)To Fiber Optic support 2 Channel BIDI balance audio 16-bit digitally encoded broadcast quality balance audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Opitcal:

Wavelength

1310nm&1470nm~1610nm

Output Power

-14~ -8dBm / -5~0dBm

Optic fiber

50/125u multimode,62.5/125u multimode,9/125u single mode

Rx sensitivity

-30dBm

Optical connector

FC,ST,SC (optional)

Distance

0~2KM (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balance Audio

Number of Channels

2 Input +2 Output

Input Connector

XLR(female)

Output Connector

XLR(male)

Input / Output Impedance

10K Ohm

Input capacitance LINE inputs

10 pF

Max input/output voltage

3.0Vp-p

Frequency Response

10 Hz～24kHz @±3dB

Sample Rates From

48kHz

SNR

> 80dB

Electrical & Mechanical

Input Power Requirements:

DC 5V@2A

Power Adapter:

AC 90V~240V

Power Consumption:

< 5W

Stand-Alone Dimensions:

168mm × 154mm × 45mm

Shipping Weight:

(include Transmitter & Receiver ) 2.5kg

Environmental

Operating Temperature:

-20°C ~ +75°C

Storage Temperature:

-40°C ~ +85°C

Relative Humidity:

0% ~ 95% (non-condensing)

MTBF:

>100,000 hours

Standalone Dimensions:

voice to fiber converter,voice over fiber extender,voice to fiber transceiver

connection diagram:

voice to fiber converter,voice over fiber extender,voice to fiber transceiver
