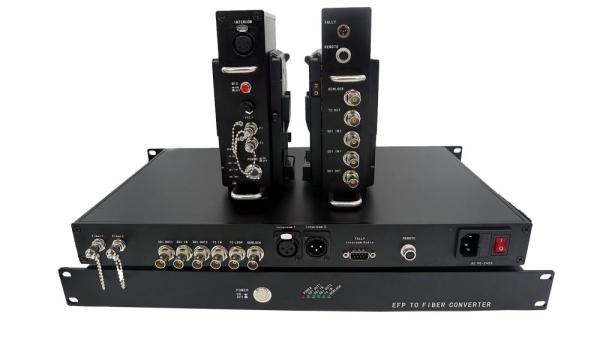

Anton Bauer style Gold Mount Adaptor & OB-van Base station for EFP HD-SDI to fiber converter
Anton Bauer style Gold Mount Adaptor & OB-van Base station for EFP HD-SDI to fiber converter
Anton Bauer style Gold Mount Adaptor & OB-van Base station for EFP HD-SDI to fiber converter
Anton Bauer style Gold Mount Adaptor & OB-van Base station for EFP HD-SDI to fiber converter
Anton Bauer style Gold Mount Adaptor & OB-van Base station for EFP HD-SDI to fiber converter
Anton Bauer style Gold Mount Adaptor & OB-van Base station for EFP HD-SDI to fiber converter
Specifications
Brand Name :
Beyondopto
Model Number :
BY-EFP-4106P
Certification :
CE FCC
Place of Origin :
ShenZhen,China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
200 pairs per month
Delivery Time :
15-20 working days
Packaging Details :
paper box packing for export, including 1 x adapter,1 x main station,1 x user manual ,1 x power line
adapter type :

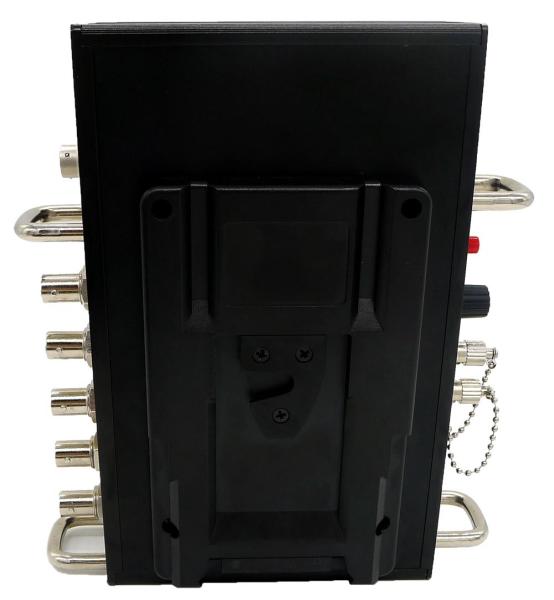

Anton Bauer Gold Mount Adaptor
Main station :
19 inch 1U rack
SDI input :
2-ch 3G-SDI video input
SDI output :
1-ch 3G-SDI video output
Timecode :
1-ch Timecode and 1-ch loopout
Genlock :
1-ch genlock
Weight :
Approax.5 KG
intercom :
party-line audio
Description

Anton Bauer style Gold Mount Adaptor & OB-van Base station for EFP HD-SDI to fiber converter

Anton Bauer style Gold Mount Adaptor & OB-van Base station for EFP HD-SDI to fiber converter
General index

Work Temp-25°C to 55°C
Storage Temp-40°C to 85°C
humidity0 ~ 95% (non-condensing)
Camera Optic Adaptor
Input powerDC 11~19V
Power consumption<8W
Net weight1kg
Appearance size188mm*116mm*45mm(without V-mount / A-mount)
Optic Base Station
Input powerAC90~240V
Power consumption<20W
Net weight3kg
Appearance size19” 1U standard rack mount


Optical:

Wavelength1310nm / 1550nm / CWDM
Output Power-6~-1dBm
Rx sensitivity<-18dBm
Transmission DistanceSM fiber 10+km , MM fiber 300m
Optical connectorDul LC /FC/ST/SC/ Lemo 3K.93C/ Neutrik OpticalCON DUO


SDI input/output:

Signal formatSMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate270Mbit/s - 1.48Gbit/s - 3Gbit/s
Cable Equalization

Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s

SDI interfaceBNC 75 Ohm


Intercom:

Camera Optic Adaptor
Interface4pin XLR(Male) /5pin XLR(Female)
MicrophoneMic inputs with mute and pre-amps
HeadphoneWith amplifier and volume up or down
Optic Base Station
Interface

3pin XLR Female/Male: Party line audio for Clearcom or RTS Intercom main station
DB9(Male): Line level audio input and output


Tally:

Camera Optic Adaptor
Interface4pin air head or 3pin mini XLR
OutputDry Contact Closure or wet LED+/-

On: short or LED on
Off: open or LED off

Optic Base Station
InterfaceDB9(Male)
Input

Dry Contact Closure or TTL
On: short to GND or TTL low
Off: open or TTL high


Remote:

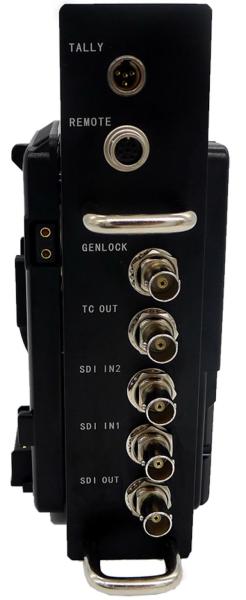

Camera Optic Adaptor
InterfaceSONY’s 8 pin or Panasonic’s 10 pin interface
DataRS422 /RS232/RS485
Optic Base Station
InterfaceSONY’s 8 pin or Panasonic’s 10 pin interface
DataRS422 /RS232/RS485
