Specifications
Brand Name :
Beyondopto
Model Number :
BY-AHD-16V-1080p
Certification :
CE FCC
Place of Origin :
ShenZhen,China
MOQ :
1 pairs
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000 pairs per month
Delivery Time :
1-3 working days
Packaging Details :
paper box packing for export
Wavelength :
1310nm&1550nm
Optical connector :
FC、ST、SC (optional)
Dimension :
482mmx252mmx50mm
Unit Weight :
7.5kg (pair)
Description

16ch AHD Over Fiber Optic can simultaneously transmit 16 ch AHD +1 ch RS485(optional) over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.
Features
1.High definition, Lossless non-compression real time transmission
2.Auto recognition of input video format as AHD-H,AHD-M,AHD-L
3.UPnP, easy installation
4.Constant input optical power, and large dynamic range , no electrical or optical adjustments required .
5.Industry-grade of operating temperature from -30℃to 75℃
6.19’’ 1U rack-mount chassis.
7.Optical interface: FC,ST, SC (optional)

Specifications
Opitcal:

Wavelength1310nm&1550nm
Output Power-6~-2dBm
Rx sensitivity-22dBm
Transmission Distance9/125u single mode, 20km
Optical connectorFC,ST,SC (optional)


Video:

Number of Channels16
Input/output impedanceBNC 75Ω (unbalance)
Standard video input/output voltage1.0Vp-p
Video Bandwidth45MHz
Sampling Bandwidth10bit
Sampling Frequency108MHz
Rise and Fall time<0.8ns
Optical Signal Intrinsic Jitter<0.2 UI
Differential Gain< ±1.5%
Differential Phase< ±1°
ConnectorBNC


Data:

Data protocolRS485
Data rate0~200 Kbps
Error rate< 10-9
ConnectorStandard terminal lead


Other

Power

AC 90~240V

Power Consumption≤15W
Temperature-30ºC ~75ºC
Humidity10%~90% RH
Unit Weight7.5kg (pair)
Dimension

482mm×252mm×50mm

Package size

54×40×18cm

Installation

19’’ 1U rack-mount chassis

MTBF≥ 100000Hours
Case materialAluminum

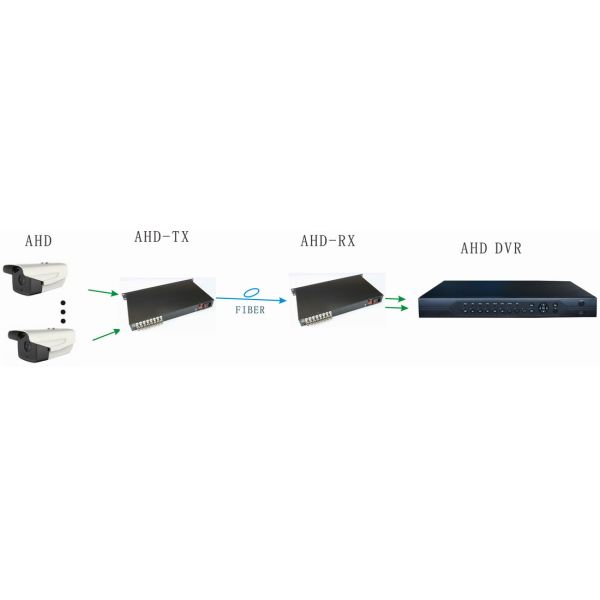

16ch AHD Over Fiber Optic System connection diagram

HD/AHD Video fiber converter,1080P 16ch AHD video to fiber extender,


Without data:
HD/AHD Video fiber converter,1080P 16ch AHD video to fiber extender,

With RS485 data:
HD/AHD Video fiber converter,1080P 16ch AHD video to fiber extender,

Standalone Dimensions:

HD/AHD Video fiber converter,1080P 16ch AHD video to fiber extender,

Can be customized the customer brand or without a trademark
