KVM with USB3.0/2.2/1.1 fiber optical converter,USB3.0 to KVM (HDMI +USB3.0) Fiber optic converter,
KVM with USB3.0/2.2/1.1 fiber optical converter,USB3.0 to KVM (HDMI +USB3.0) Fiber optic converter,
Specifications
Brand Name :
BEYOND
Model Number :
BY-USB-KVM-SM003
Certification :
CE FCC
Place of Origin :
ShenZhen,China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000 pairs per week
Delivery Time :
5-8 working days
Packaging Details :
Paper box packing for export,1x transmitter,1xreceiver,1x power adapter,1x user's manual
wavelength :
1270nm/1330nm/1310nm
Fiber connector :
Duplex/Single LC
Material :
Aluminium
Color :
Black
Weight :
0.75 KG
Power adapter :
DC 5V 2A
Transmitter size :
157*81*29 mm
Receiver size :
90*33*17.5 mm
Description

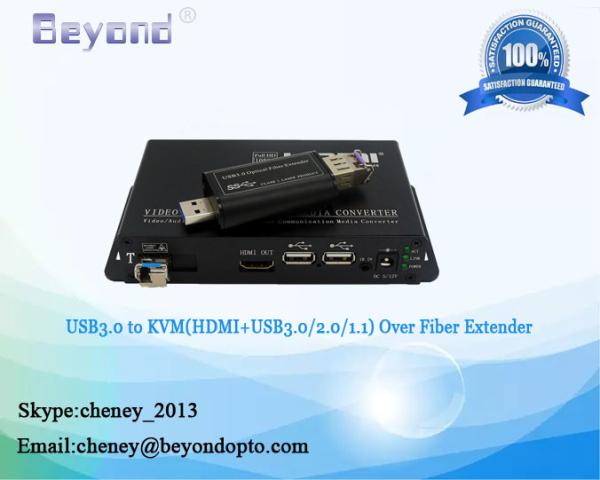

USB3.0 to KVM hdmi+usb3.0/2.0/1.1 to fiber extender includes a transmitter and a receiver, which can extend HDMI and USB3.0/USB2.0/USB1.1 (keyboard or mouse) through a USB3.0 port to remote location over fiber, max distance 250m (SM or MM fiber cable).
The device support HDMI / DVI transmission at real-time, max resolution support can reach 1920*1080 @ 60Hz. The product can be used for long distance expansion of the second screen, long distance KVM control

Product feature:

1, One end connected to the USB3.0 port of PC

2, The other end HDMI Output and 2 USB port(USB3.0/USB2.0/USB1.1 /keyboard or mouse)

3, Support USB3.0 SuperSpeed up to 5Gbps, USB 3.0 Type A Receptacle

4, Duplex/Single LC fiber connecter

Product specification:

Optical Connector Duplex/Single LC
Wave length 1310nm/1270/1330nm
Physical Size (receiver) 90mm x33mm x17.5mm
Size (transmitter) 157mmx81mmx29mm
Case Aluminum
Color Black
N.W. 0.75Kg
Power Voltage 5V DC
sender power consumption <5W
receiver power consumption <5W
Environment Working temperature 0℃-50℃
Storage temperature -40-85℃
Humidity 0-95% (non-condensing)

Panel diagram:

KVM with USB3.0/2.2/1.1 fiber optical converter,USB3.0 to KVM (HDMI +USB3.0) Fiber optic converter,

Connection diagram:

KVM with USB3.0/2.2/1.1 fiber optical converter,USB3.0 to KVM (HDMI +USB3.0) Fiber optic converter,
