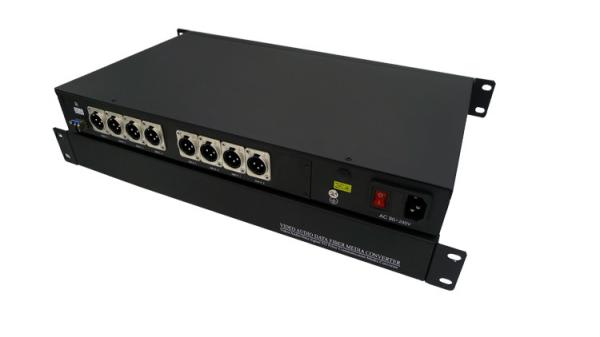

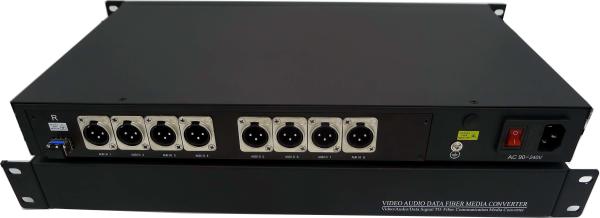

broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
Specifications
Brand Name :
beyond
Model Number :
BY-XLR-8A-SM001
Certification :
CE FCC Rosh
Place of Origin :
ShenZhen,China
MOQ :
1 pair including one transmitter and one receiver
Price :
Negotiable
Payment Terms :
T/T or Paypal
Supply Ability :
300 pairs per week
Delivery Time :
1-3 working days
Packaging Details :
paper carton for export
Wavelength :
1310nm&1470nm~1610nm
Optic fiber :
50/125u multimode，62.5/125u multimode，9/125u single mode
Rx sensitivity :
-25dBm
Optical connector :
FC、ST、SC 、LC(optional)
Distance :
0~20KM/40KM/60KM/80KM (SM)
Power Adapter :
AC 90V~240V
Weight: :
Approax.7 kg
Description

8 ch balanced audio over fiber series support 8 Channel balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST, SC or LC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Opitcal:

Wavelength 1310nm&1470nm~1610nm
Output Power -9~ -3dBm / -5~0dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC ,LC(optional)
Distance 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balanced Audio

Number of Channels 8
Input Connector XLR(female)
Output Connector XLR(male)
Input / Output Impedance 10K Ohm
Input capacitance LINE inputs 10 pF
Max input/output voltage 3.0Vp-p
Frequency Response 10 Hz～24kHz @±3dB
Sample Rates From 48kHz
SNR > 80dB

Electrical & Mechanical

Power Adapter: AC 90V~240V
Power Consumption: < 8W
Installation 19’’ 1U rack-mount chassis
Shipping Weight: (include Transmitter & Receiver ) 7kg

Environmental

Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours

Balanced Audio over Fiber connection diagram

broadcasting programmes balanced audio over fiber extender,8-CH 19inch Rack 3-pin XLR balanced audio to fiber converter
