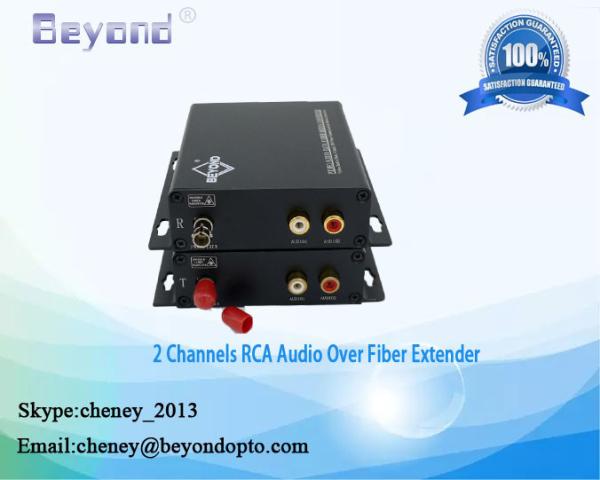

Stereo RCA audio Over fiber extender for radio fiber transmission,2ch RCA audio to fiber transmitter and receiver
Stereo RCA audio Over fiber extender for radio fiber transmission,2ch RCA audio to fiber transmitter and receiver
Specifications
Brand Name :
beyond
Model Number :
BY-RCA-2A-SM001
Certification :
CE FCC ROSH
Place of Origin :
China,ShenZhen
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T or Paypal
Supply Ability :
1000 pairs per week
Delivery Time :
1-3 working days
Packaging Details :
paper carton for export,
Impedance :
600ohm(unbalance)
Max input/output voltage :
3.0Vp-p
Frequency Response :
10 Hz～29kHz @±3dB
Power :
DC 5V@2A
Dimensions: :
104mm x104mm x28mm
Shipping Weight: :
0.8kg
Description

2ch Audio (RCA) To Fiber Convertor support 2 channels Audio (RCA) over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Features

• 24-Bit Digitally Encoded Audio

• Support Point-to-Point or Daisy-Chain connection

• Multimode Fiber transmit up to 4km without Optical Attenuation

• Single-Mode Fiber transmit up to 100km without Optical Attenuation

• No EMI, RFI, Cross Talk or Video Distortion and no ground loops

• LED Indicators for Instant System Monitoring

• Standalone or Rack Mount in FVC14 Chassis

• Produce according to customer's specifications, providing OEM

Specifications

Audio
Input/output Impedance 600ohm(unbalance)
Max input/output voltage 3.0Vp-p
Frequency Response 10 Hz～29kHz @±3dB
SNR > 70dB
Connector RCA

Electrical & Mechanical
Input Power Requirements: DC 5V@2A
Power Adapter: AC 900V~240V
Power Consumption: < 3W
Stand-Alone Dimensions: 104mm × 104mm × 28mm
Shipping Weight: (include Transmitter & Receiver ) 0.8kg

Environmental
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours

System connection diagram:

Stereo RCA audio Over fiber extender for radio fiber transmission,2ch RCA audio to fiber transmitter and receiver

Standalone Dimensions:

Stereo RCA audio Over fiber extender for radio fiber transmission,2ch RCA audio to fiber transmitter and receiver
