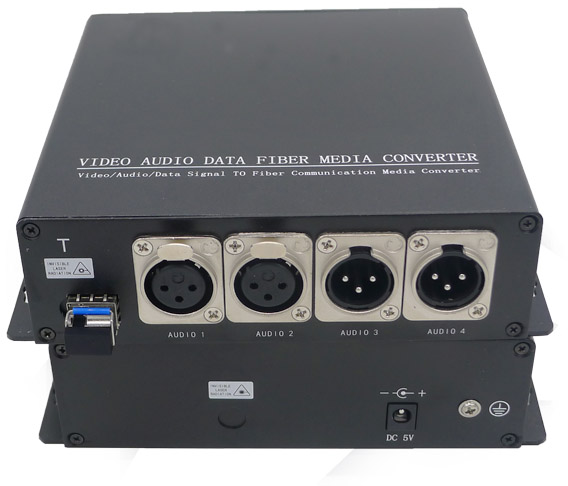

Beyonopto BY-XLR-2AA DVCPRO XLR audio over fiber extender,Rideo audio fiber transmitter and receiver
Beyonopto BY-XLR-2AA DVCPRO XLR audio over fiber extender,Rideo audio fiber transmitter and receiver
Specifications
Brand Name :
Beyondopto
Model Number :
BY-XLR-2AA
Certification :
CE FCC ROSH
Place of Origin :
ShenZhen,China
MOQ :
1 pair
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000 pairs per month
Delivery Time :
1-3 working days
Packaging Details :
Paper box packing for export
Wavelength :
1310nm&1470nm~1610nm
Output Power :
-14~ -8dBm / -5~0dBm
Rx sensitivity :
-30dBm
Distance :
20KM/40KM/60KM/80KM
Power adapter :
DC 5V@2A
Dimensions: :
168mm x 154mm x 45mm
Weight: :
2.5kg
Description

Specifications

Opitcal:

Wavelength 1310nm&1470nm~1610nm
Output Power -14~ -8dBm / -5~0dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -30dBm
Optical connector FC,ST,SC (optional)
Distance 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)

Balanced Audio

Number of Channels 2 Input +2 Output
Input Connector XLR(female)
Output Connector XLR(male)
Input / Output Impedance 10K Ohm
Input capacitance LINE inputs 10 pF
Max input/output voltage 3.0Vp-p
Frequency Response 10 Hz～24kHz @±3dB
Sample Rates From 48kHz
SNR > 80dB

Electrical & Mechanical

Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 5W
Stand-Alone Dimensions: 168mm × 154mm × 45mm
Shipping Weight: (include Transmitter & Receiver ) 2.5kg

Environmental

Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours


Beyonopto BY-XLR-2AA DVCPRO XLR audio over fiber extender,Rideo audio fiber transmitter and receiver

OEM is acceptable!
